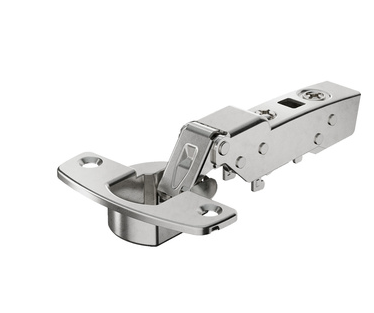

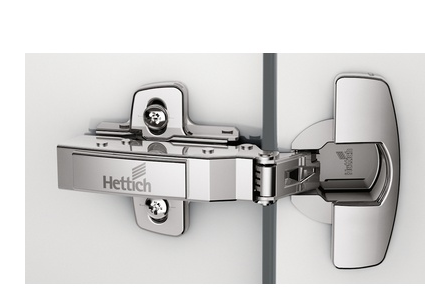

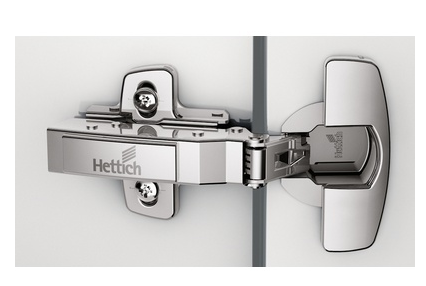

Hettich Germany Sensys 110° Hinge with Integrated Silent System Overlay ,Half overlay & Inset TH-Drilling Pattern 52 x 5.5 mm, for Screwing On Finish Nickle plated
With integrated Silent System, with self closing feature (Sensys 8645i)
Quality classification under EN 15570, Level 3
Opening angle 110°
For door thickness 15 - 24 mm
Door mounting option overlay

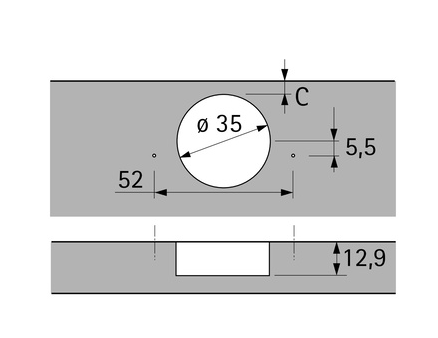

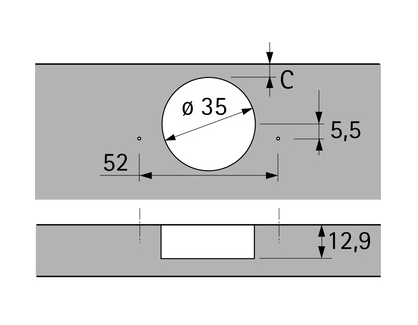

Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm

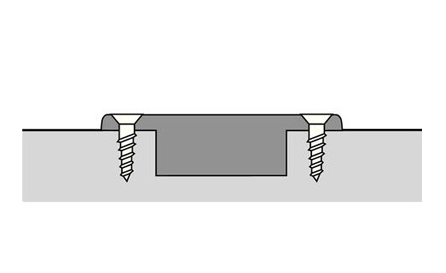

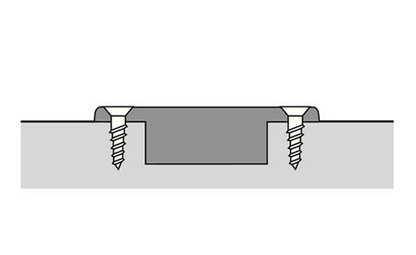

Installation for screwing on
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm

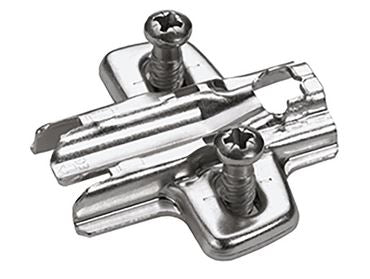

Height adjustment at mounting plate
steel nickel plated

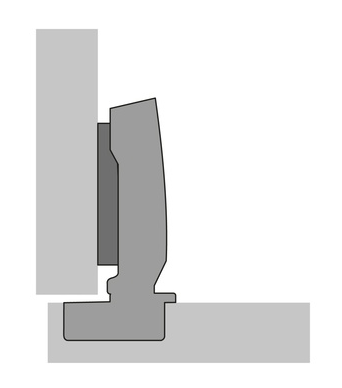

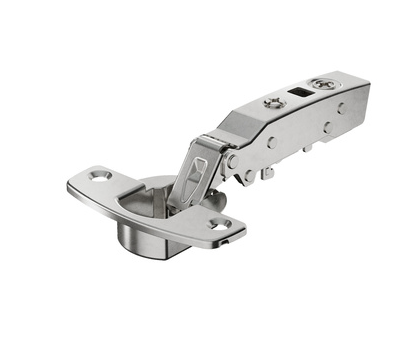

Technical details : Overlay
Design
90° construction
Door type
Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm)
User friendly features
with integrated silent system
Door mounting option
overlay
Opening angle
110 °
Min. door thickness
15 mm
Max. door thickness
24 mm
Cup version
TH 52
Base
12.5 mm
Cup diameter
35 mm
Cup depth
12.8 mm
Type of installation
for screwing on
Hinge surface finish
steel nickel plated
Drilling pattern
TH 52 x 5,5 mm
Diameter of mounting hole
Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment
+2 mm / -2 mm
Integrated depth adjustment
+3 mm / -2 mm
Mounting hole
-
Stay closed function
Yes
Finish
nickel plated
EAN
4023149030901
Order no.
9071205
PU
200

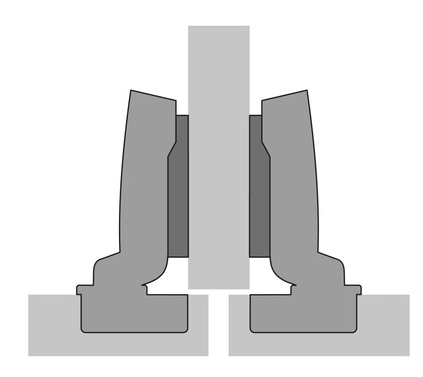

Technical details : Half overlay
Design
90° construction
Door type
Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm)
User friendly features
with integrated silent system
Door mounting option
half overlay
Opening angle
110 °
Min. door thickness
15 mm
Max. door thickness
24 mm
Cup version
TH 52
Base
3 mm
Cup diameter
35 mm
Cup depth
12.8 mm
Type of installation
for screwing on
Hinge surface finish
steel nickel plated

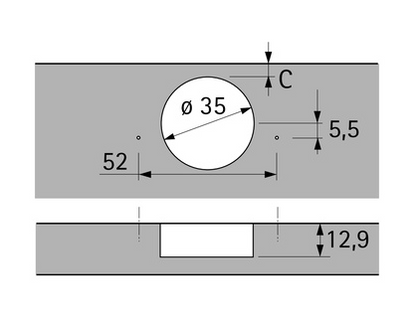

Drilling pattern
TH 52 x 5,5 mm
Diameter of mounting hole
Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment
+2 mm / -2 mm
Integrated depth adjustment
+3 mm / -2 mm
Mounting hole
-
Stay closed function
Yes
Finish
nickel plated
EAN
4023149652202
Order no.
9071206
PU
200

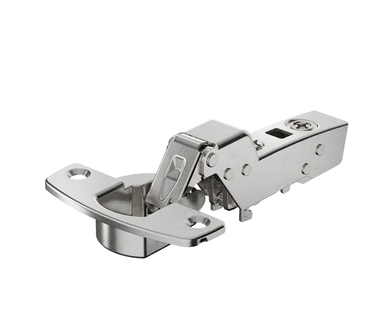

Technical details : Inset
Design
90° construction
Door type
Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm)
User friendly features
with integrated silent system
Door mounting option
inset
Opening angle
110 °
Min. door thickness
15 mm
Max. door thickness
24 mm
Cup version
TH 52
Base
-4 mm
Cup diameter
35 mm
Cup depth
12.8 mm
Type of installation
for screwing on
Hinge surface finish
steel nickel plated
Drilling pattern
TH 52 x 5,5 mm
Diameter of mounting hole
Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment
+2 mm / -2 mm
Integrated depth adjustment
+3 mm / -2 mm
Mounting hole
-
Stay closed function
Yes
Finish
nickel plated
EAN
4023149033681
Order no.
9071207
PU
200
