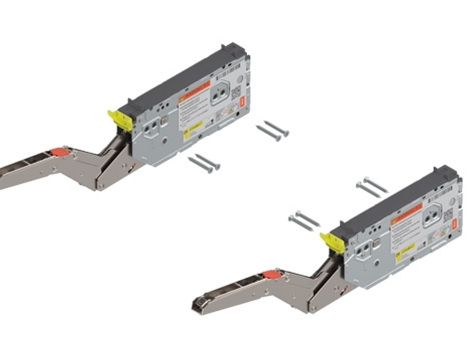

Blum Aventos HK Top BLUMOTION Kitset (Power factor 1730-5200) 22K2701
Blum Aventos HK Top BLUMOTION Kitset (Power factor 1730-5200) 22K2701
SKU:380 156 33
Product information
- Light operating forces for easy opening irrespective of the front weight
- Lever arms are closed so that no parts protrude beyond the cabinet, facilitating internal transport
- 3-dimensional front adjustment for a visually perfect gap layout
- No hinges required
- Easy assembly
- Fixed position of the lift mechanism and the front fixing brackets within the cabinet regardless of the cabinet height
- Integrated safety mechanism prevents unintentional opening of the lever arm
- Variable front stop after adjusting the lift mechanism to the exact weight of the front
- Lift mechanism with integrated positioning system
- Soft and effortless closing thanks to the integrated BLUMOTION soft-close mechanism, regardless of the weight of the front and closing speed
- The integrated and infinitely variable opening angle stop prevents the front from hitting the ceiling
- Convenient, infinitely variable lift mechanism adjustment from the front
- Suitable for the SERVO-DRIVE electronic opening support system
Technical data

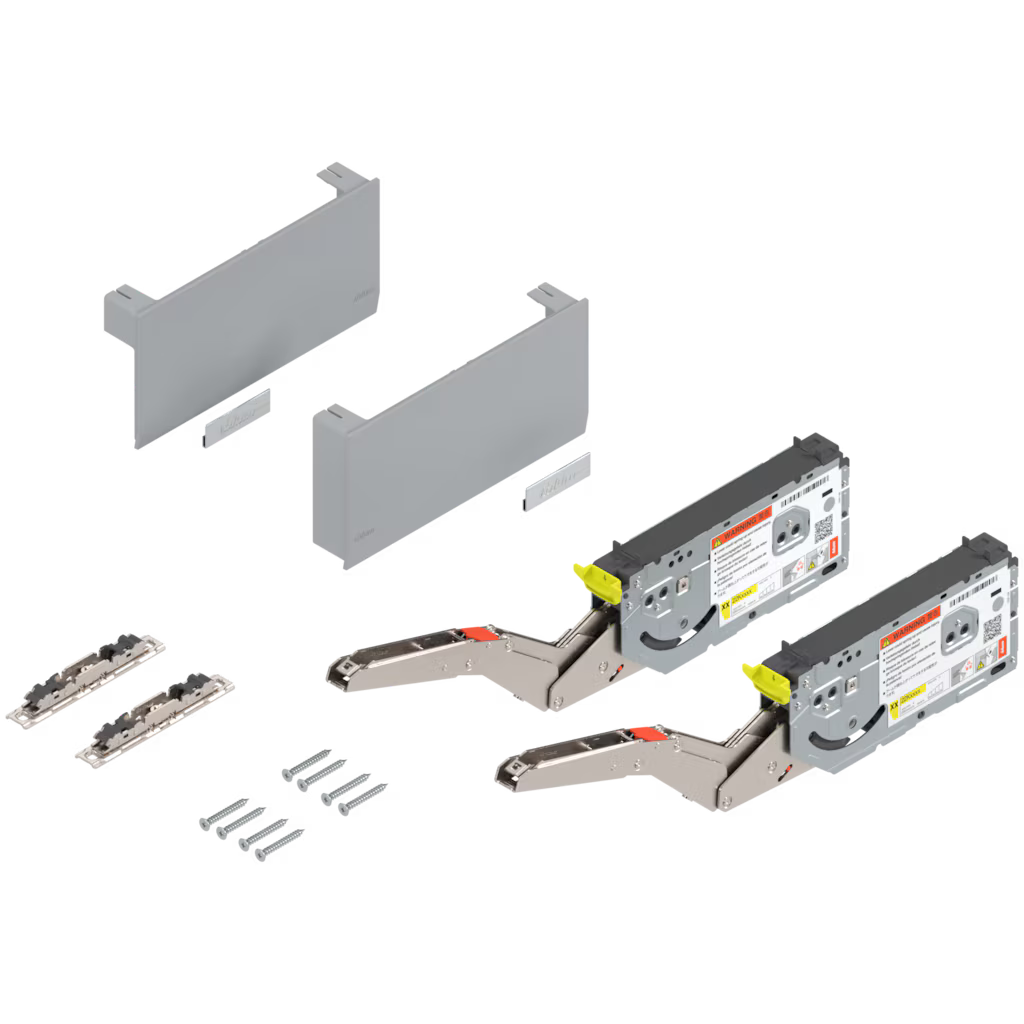

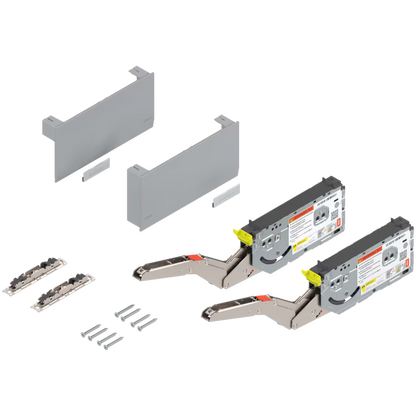

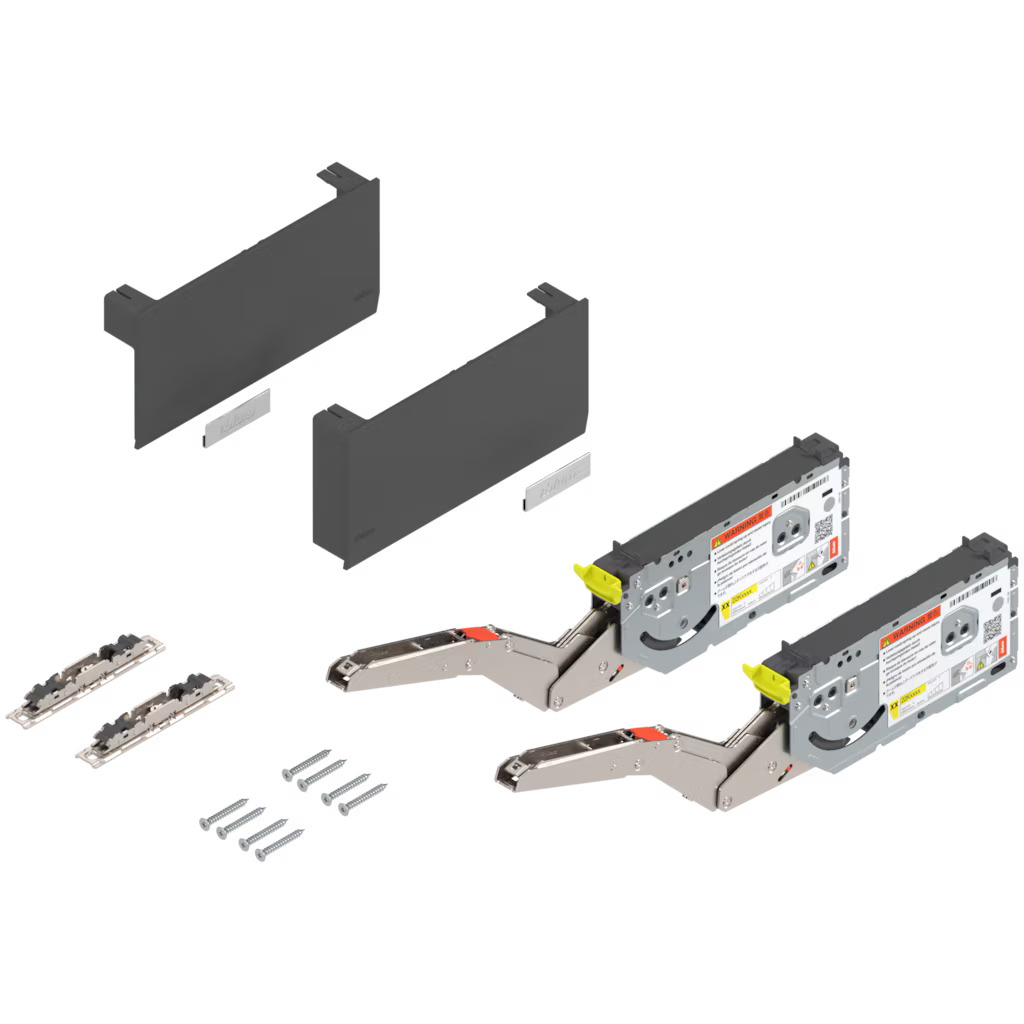

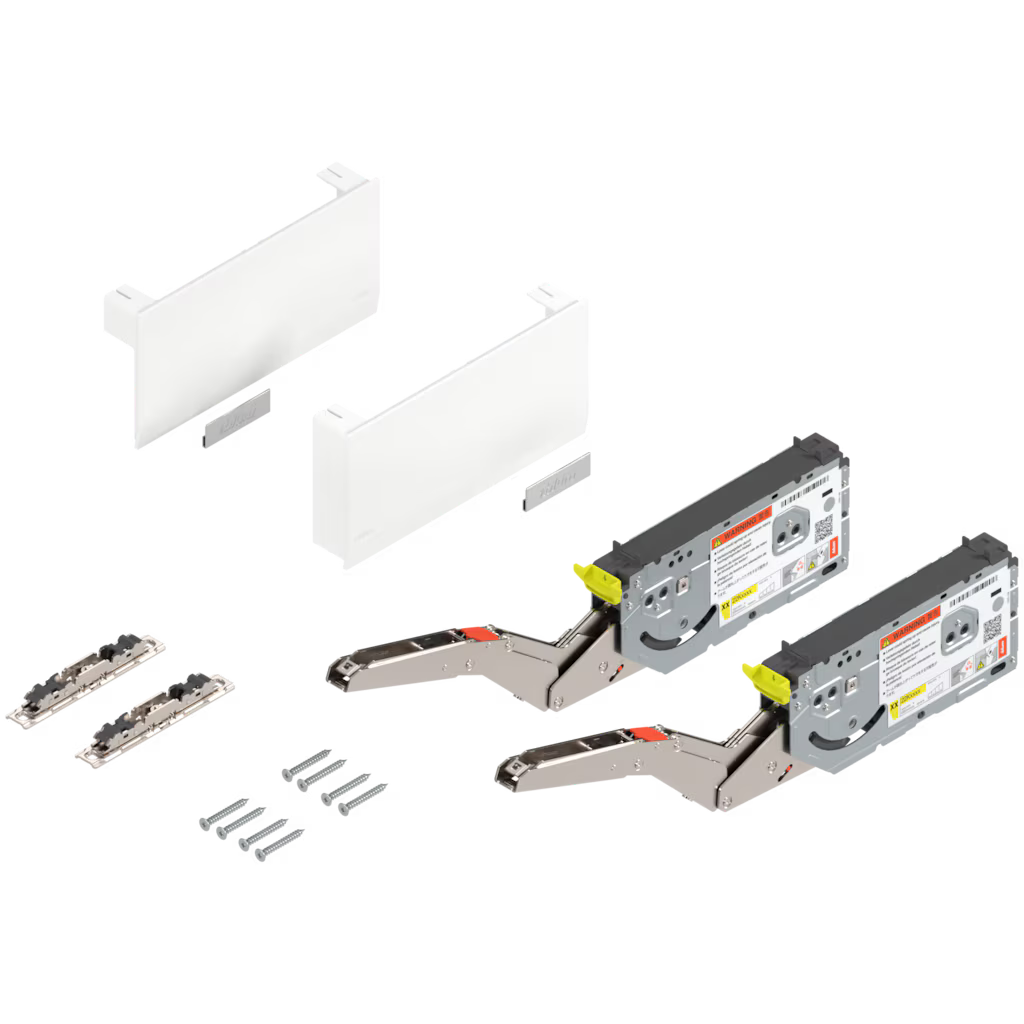

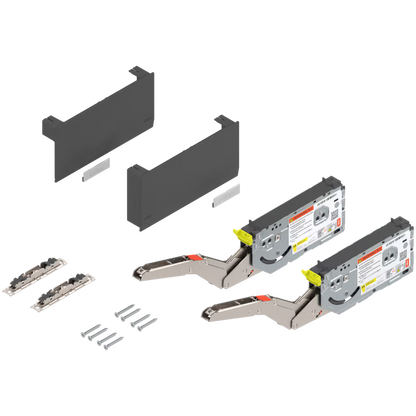

Available in 3 colours Silk White, Light Grey & Dark Grey Please mention color preference while ordering .
AVENTOS HK top: Integrated features facilitate installation and adjustment
The fixing position of AVENTOS HK top is the same regardless of application and cabinet height. Once the lift mechanism has been precisely adjusted to the weight of the front, the stay lift will open, close and hold with reliable ease.
Lift mechanism with positioning system
Simply position this type of lift mechanism so it touches the top panel and is flush with the cabinet face, then screw on. No pre-drilling needed.
Easy assembly and adjustment
- No protruding parts. This greatly facilitates in-house
- transportation.
- Integrated safety mechanism stops the lever arm from
- opening unintentionally.
- Tried and tested CLIP mechanism is tool-free, quick and easy.
- Lift mechanisms can be set from the front without having to remove cover caps.
- Consequently, fronts will stay in any position desired.
- 3-dimensional adjustment achieved using TORX screws -
- quick, easy and low in wear.
- Integrated opening angle stop with infinitely variable setting has been integrated into the fitting.
Product Specifications:
- Power Factor (LF):1730-5200
- Max. Opening Angle: 107 deg.
- Blum Opening Mechanism: Standard
- Assembly Type: Lift mechanism with positioning system, chipboard screws
How to calculate the power factor:
Power factor = cabinet height (KH) [mm] x front weight including double the handle weight [kg]
