Description:

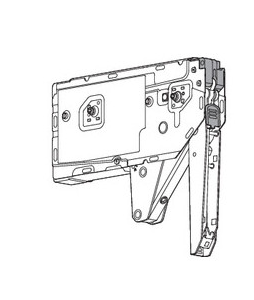

Lift mechanism with pre-mounted system screws

AVENTOS HK top: Integrated features facilitate installation and adjustment
The fixing position of AVENTOS HK top is the same regardless of application and cabinet height.

Once the lift mechanism has been precisely adjusted to the weight of the front, the stay lift will open, close and hold with reliable ease.

Assembly with pre-mounted system screws

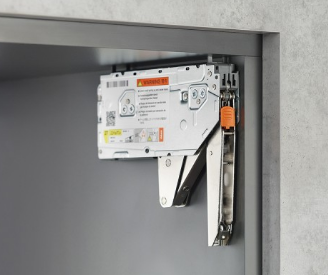

This type of lift mechanism is fixed to the cabinet side with two system screws and two pegs.

Requires four holes in a horizontal line in system 32 .

Easy assembly and adjustment

• No protruding parts. This greatly facilitates in-house
• transportation.
• Integrated safety mechanism stops the lever arm from
• opening unintentionally.
• Tried and tested CLIP mechanism is tool-free, quick and easy.
• Lift mechanisms can be set from the front without having to remove cover caps.
• Consequently, fronts will stay in any position desired.
• 3-dimensional adjustment achieved using TORX screws -
• quick, easy and low in wear.
• Integrated opening angle stop with infinitely variable
• setting has been integrated into the fitting.

Product Specifications:

• Power Factor (LF): 420-1610
• Max. Opening Angle: 107 deg.
• Blum Opening Mechanism: Standard
• Assembly Type: Lift mechanism with pre-mounted system screws

How to calculate the power factor:
Power factor = cabinet height (KH) [mm] x front weight including double the handle weight [kg]
