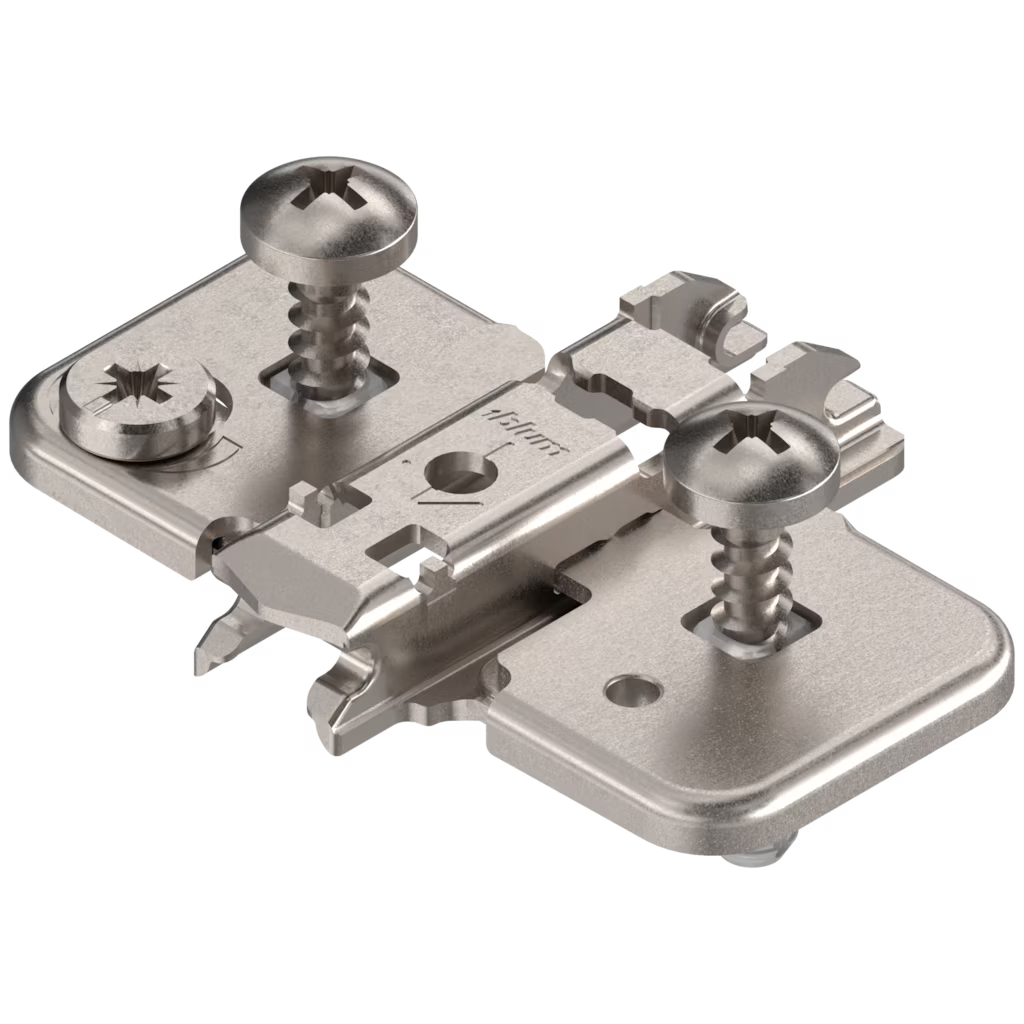

Blum Aventos HK-XS 0mm cam adjustment pre-screwed mount 174H7100E

Blum Aventos HK-XS 0mm cam adjustment pre-screwed mount 174H7100E

Brand: Blum

SKU: 093 409 77

Tax included. Shipping calculated at checkout.


Please note that this product may be a special order. Please double check it meets your requirements before ordering. More information can be found in our Refund Policy.

Our despatches are made directly from the warehouse. Please contact us should you wish to see a product as we don't stock all products at our store.

Description:

Mounting plate: 174H7100E

Mounting plate system: CLIP

Shape of mounting plate: Cruciform

Spacing: 0 mm,Material: Steel

Finish: Nickel plated,

Fixing: Expando (pre-mounted screws with split dowels)

Distance between fixing positions: 32 mm

Distance cabinet front edge to first fixing position: 37 mm

Diametre of fixing holes: 5 mm

Drilling depth of fixing holes: 11.5 mm

Mounting plates height adjustment: Through lower and upper part/cam


PLEASE CONTACT US FOR TRADE / BULK PRICING & ITEMS YOU CAN'T FIND ON OUR SITE.

THANK YOU
