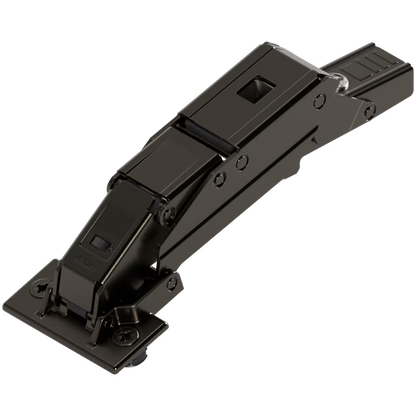

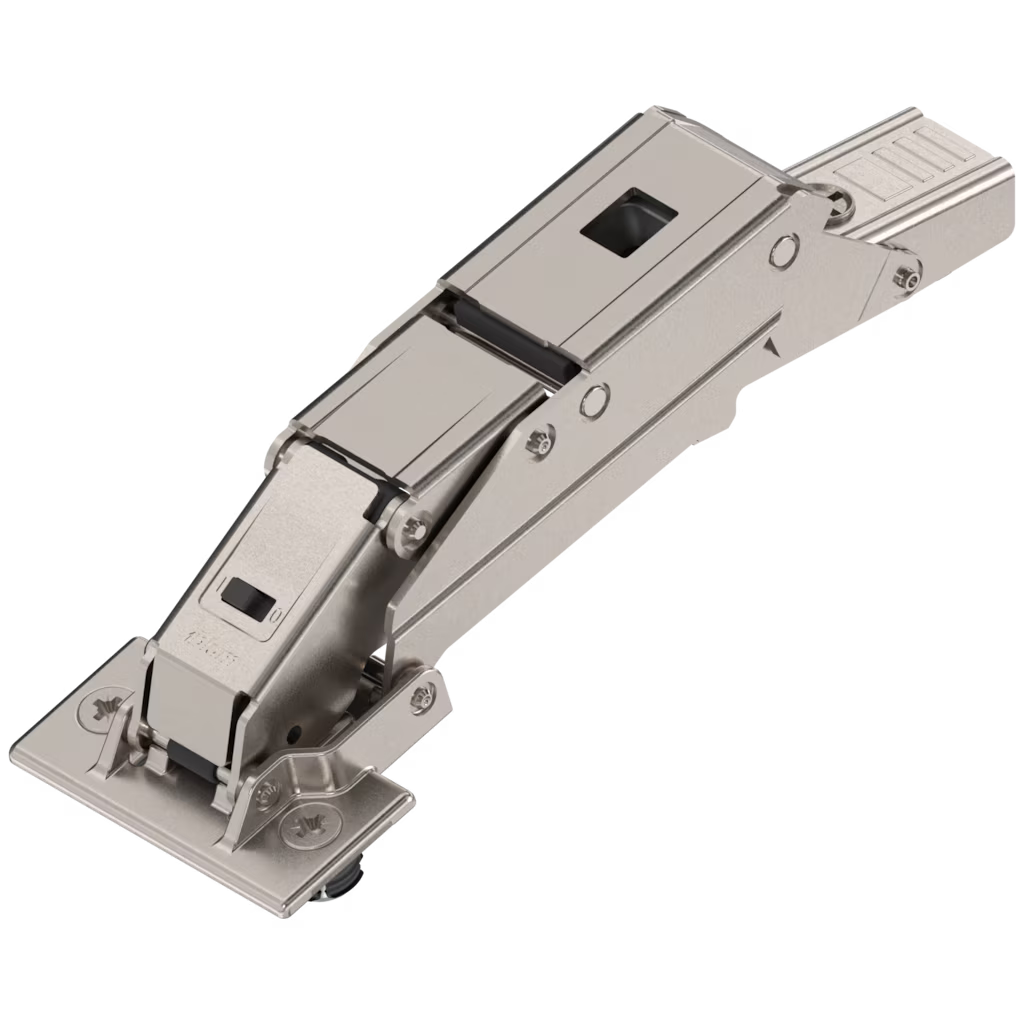

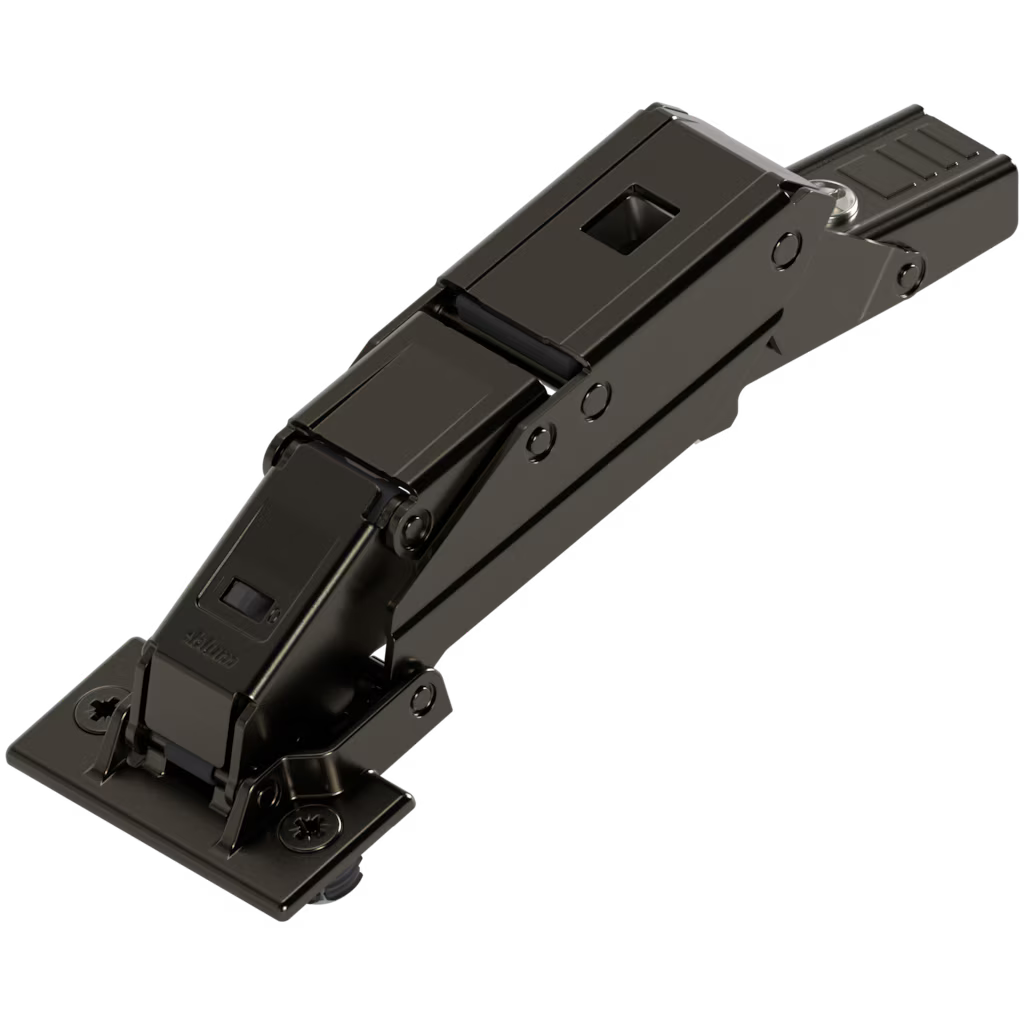

Blum Clip Top BLUMOTION Hinge for Thin Doors 110°, Overlay, Half Overlay and Inset Application- with EXPANDO T 2 Colours -Onyx Black and Nicked Plated
Blum Clip Top BLUMOTION Hinge for Thin Doors 110°, Overlay, Half Overlay and Inset Application- with EXPANDO T 2 Colours -Onyx Black and Nicked Plated
SKU:05740545
Regular price
$54.15 NZD
Regular price
Sale price
$54.15 NZD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Blum Clip Top BLUMOTION Hinge for Thin Doors 110°, Overlay, Half Overlay and Inset Application- with EXPANDO T 2 Colours -Onyx Black and Nicked Plated
Product information
The hinge is suitable for particularly thin doors and opens up extensive creative freedom in the design of furniture. Thanks to zero protrusion, the hinge is suitable both for standard applications and for cabinets with inner drawers or pull-out shelves. The integrated soft-close BLUMOTION in the hinge boss embodies innovative technology, internationally award-winning design and top quality motion within the smallest space.
- 3-dimensional front adjustment (with mounting plate) for convenient adjustment and a uniform gap layout
- suitable for thin fronts measuring 8 mm or more
- BLUMOTION can be deactivated with a sliding switch on the hinge boss, e.g. for small or lightweight doors
- Compatible with all CLIP mounting plates
- Soft and effortless closing thanks to the integrated BLUMOTION soft-close mechanism, regardless of the weight of the front and closing speed
- Tool and gap-free hinge boss installation using INSERTA
- Convenient depth adjustment with spiral screw
- Easy assembly and adjustment: drill, insert, tighten, done!
- The standard fixing position is sufficient for fixing the mounting plate in the cabinet, making it possible to use standard cabinets and simplifying the production process
- With EXPANDO T – for firm anchorage in hard and soft materials alike thanks to steel teeth and nylon components
- The integrated spring helps the door to close, and keeps it closed
- The onyx black option blends elegantly into dark furniture and also creates striking contrasts on light-coloured surfaces
-
Practical CLIP assembly method
Technical data
| Specification | Details |
|---|---|
| Type | Hinge for thin doors |
| Hinge system | CLIP top BLUMOTION |
| Mounting system | CLIP |
| Opening angle | 110° |
| Application | Overlay, half overlay and inset application |
| Front type | Wooden door thin - EXPANDO T |
| For door material | Wood |
| Material | Steel |
| Colour/Surface | Onyx black |
| Closing mechanism | With spring |
| Boss fixing | With EXPANDO T |
| Depth adjustment type | Convenient with spiral screw |
| Boss overlay in factory setting | -3.50 mm |
| 0-protrusion | Yes |
| Gross weight | 159.419 g |
| Door gap | 1.50 mm |
| Drilling depth of the fixing hole | 6.0 mm |
| Closed hinge | No |
| Suitable for lift system type | HK-XS |
| For door thickness | 8.00 - 14.00 mm |
| Motion technology | Integrated BLUMOTION |
| Pre-assembled mounting plate | No |
| Scope of delivery | 1× Hinge for thin doors |
| Type of boss cover cap | 70T4504 |
| Type of hinge arm cover cap | 70.4503 |
