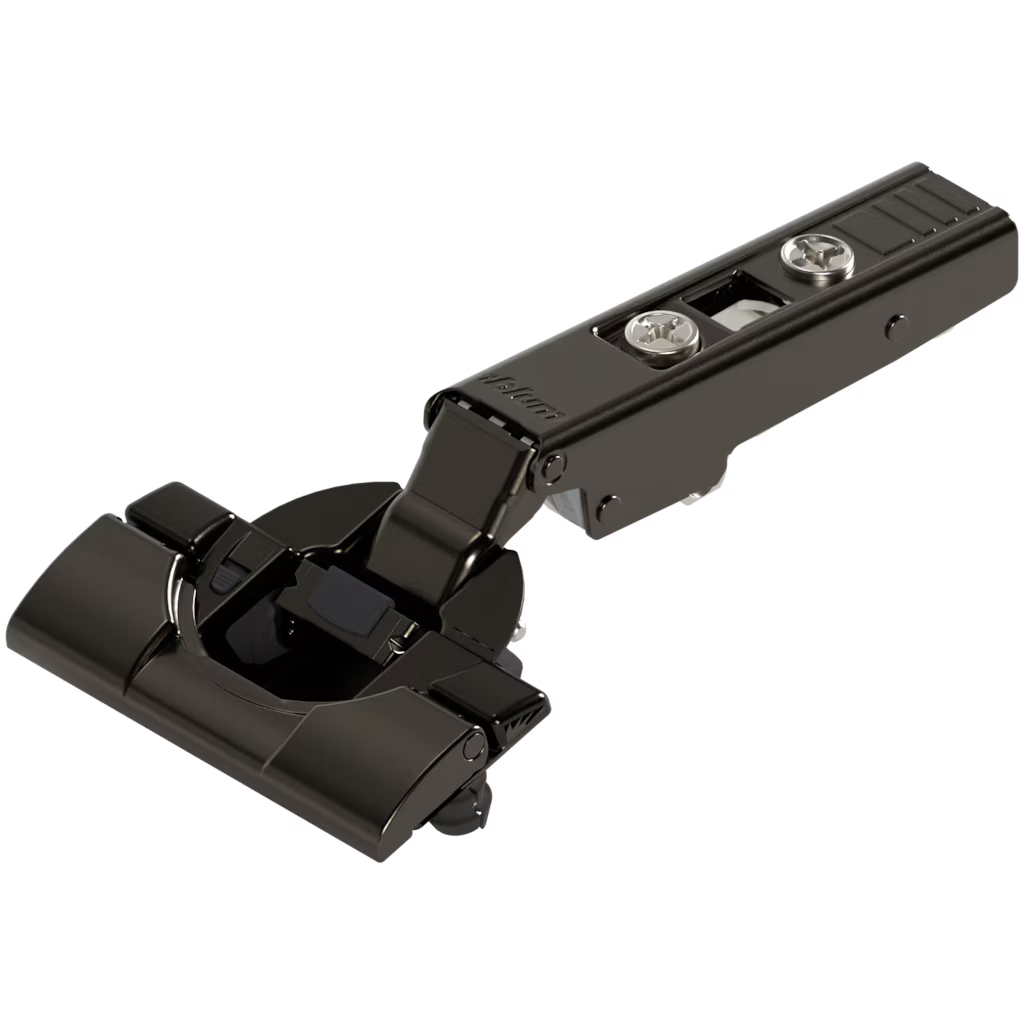

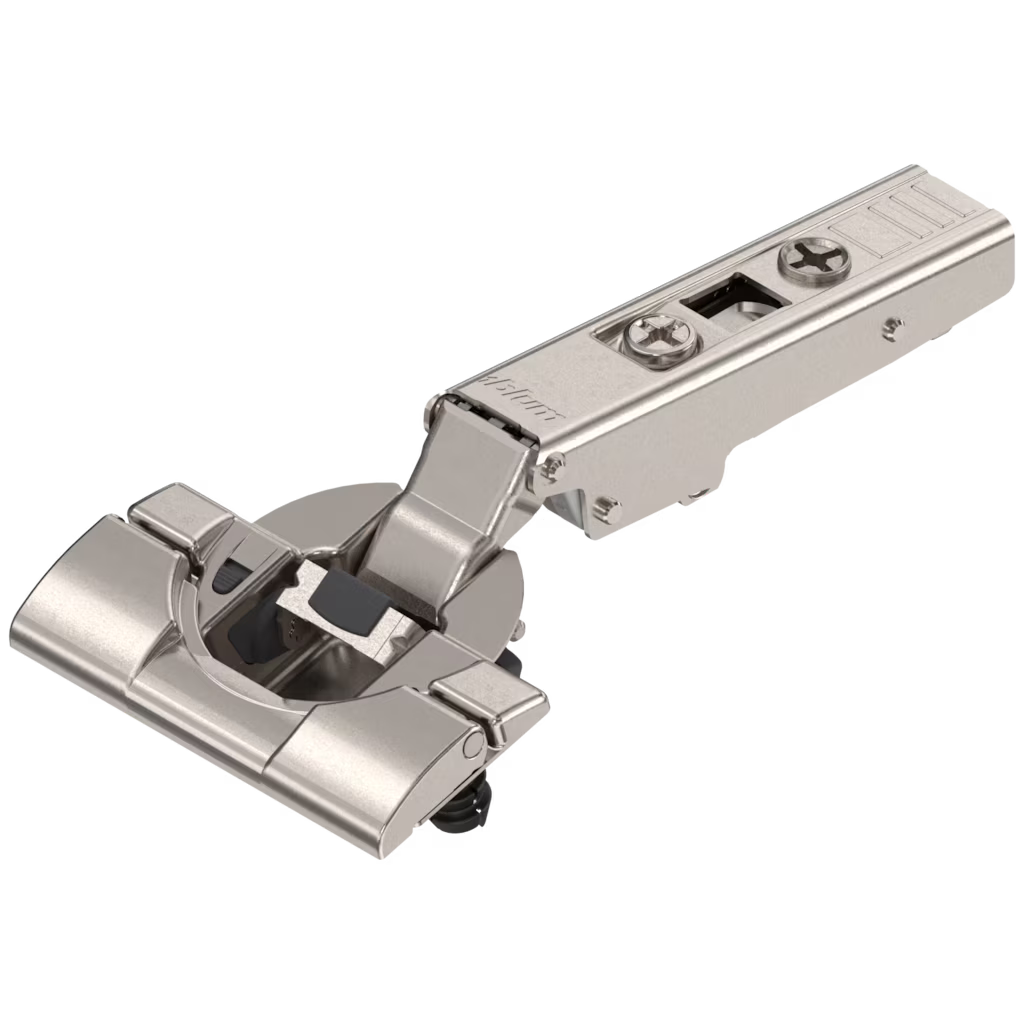

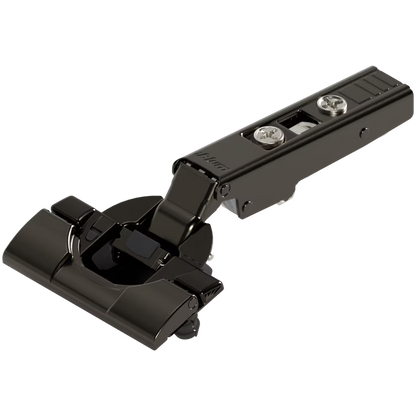

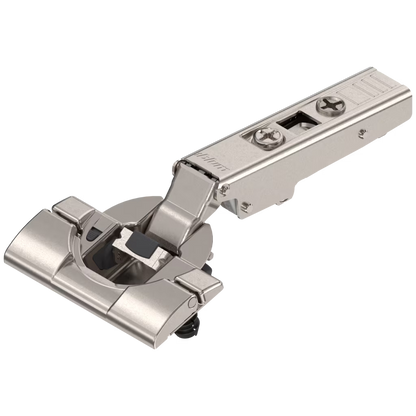

Blum Clip Top BLUMOTION Standard Hinge 110°, Overlay Application

This hinge is specifically suited for a larger front overlay with thick cabinet sides. The integrated soft-close BLUMOTION in the hinge boss embodies innovative technology, internationally award-winning design and top quality motion within the smallest space.

• 3-dimensional front adjustment (with mounting plate) for convenient adjustment and a uniform gap layout
• BLUMOTION can be deactivated with a sliding switch on the hinge boss, e.g. for small or lightweight doors
• Compatible with all CLIP mounting plates
• Soft and effortless closing thanks to the integrated BLUMOTION soft-close mechanism, regardless of the weight of the front and closing speed
• Tool and gap-free hinge boss installation using INSERTA
• Convenient depth adjustment with spiral screw
• The integrated spring helps the door to close, and keeps it closed
• The onyx black option blends elegantly into dark furniture and also creates striking contrasts on light-coloured surfaces
• Practical CLIP assembly method


Technical data

Specification	Details
Type	Standard hinge
Hinge system	CLIP top BLUMOTION
Mounting system	CLIP
Opening angle	110°
Application	Overlay application
Front type	Wooden door / Wide aluminium frame door
For door material	Wood
Material	Steel
Colour / Surface	Onyx black and nickel plated
Closing mechanism	With spring
Boss fixing	Tool-free with INSERTA
Depth adjustment type	Convenient with spiral screw
Boss overlay in factory setting	11.00 mm
0-Protrusion	No
Gross weight	84.769 g
Door gap	1.50 mm
Closed hinge	No
Suitable for lift system type	HK-XS
Motion technology	Integrated BLUMOTION
Pre-assembled mounting plate	No
Scope of delivery	1 × Standard hinge
Type of hinge arm cover cap	70.1503
