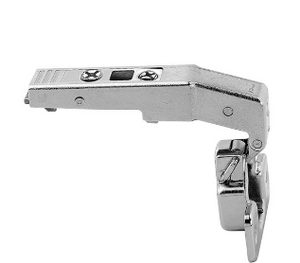

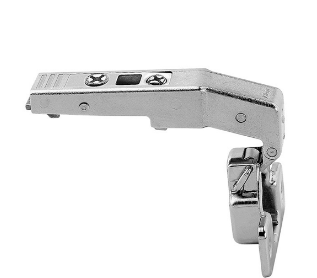

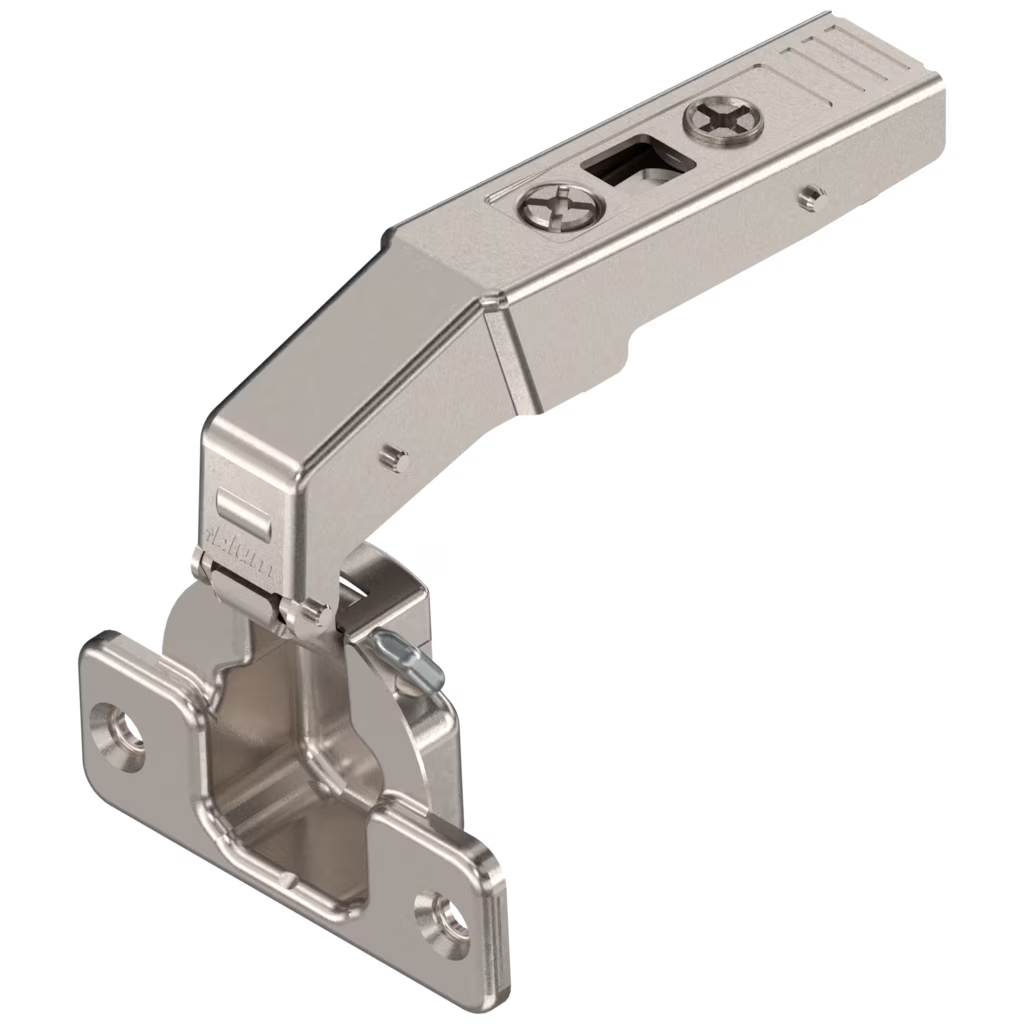

BLUM CLIP TOP HINGE 95° Unsprung Blind Corner Inset Screw-on hinge 78T9550.TL

Brand: Blum

SKU: 076 555 53

$7.73
Unit price per

Tax included. Shipping calculated at checkout.

Please note that this product may be a special order. Please double check it meets your requirements before ordering. More information can be found in our Refund Policy.

Our despatches are made directly from the warehouse. Please contact us should you wish to see a product as we don't stock all products at our store.

Description:

78T9550.TL - Blind corner inset designed for use with a 3mm mounting plate to

ensure door and fixed panel align correctly within the cabinet. *Please note mounting plate

fixing position is 21.5mm from the front edge of the fixed panel.

Three-dimensional adjustment: +/-2.5mm side and +/-1mm depth adjustment via spiral screw.

CLIP top hinges combined with Blum’s wide range of mounting plates offer height adjustment.

CLIP top mechanism removes the need to screw the hinge to the plate.

Door thickness: 16 to 28mm
Application: Inset
Opening angle: 95°
Boss type: Screw-on
Hinge material: Steel/Nickel plated
Closing mechanism: Unsprung
