D&D Technologies DD TECH LOKKLATCH DELUXE 3 - SHORT BOLT WITH TRUECLOSE HINGES

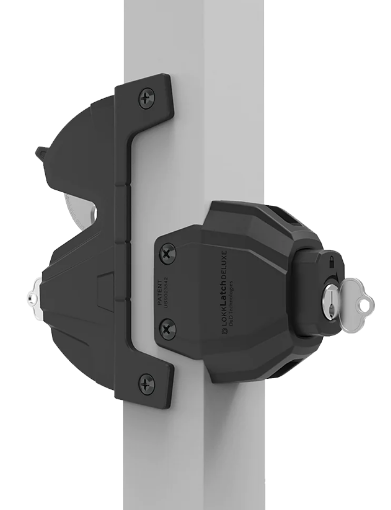

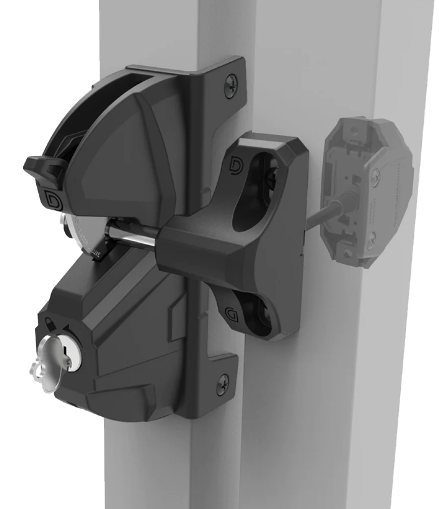

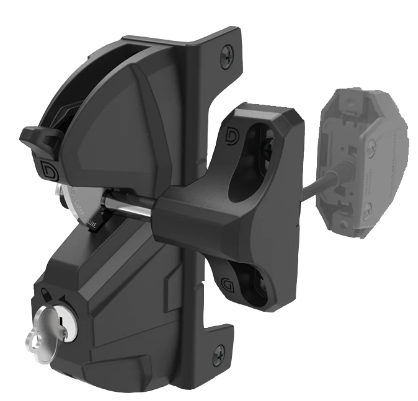

D&D LOKKLATCH® DELUXE Series 3

A premium privacy and security gate latch with external access.

The NEW D&D LokkLatch® DELUXE Series 3 model released in November 2021 is even better, stronger and faster to install. It is the ultimate privacy and security gate latch for homes and industrial areas. It operates and locks from both sides of the gate, and so eliminates the need for padlocks, chains or handle-holes in gates. The D&D LokkLatch® DELUXE Series 3 is made of super-strong, rust-free polymers and stainless steel components, so it is tough and durable.

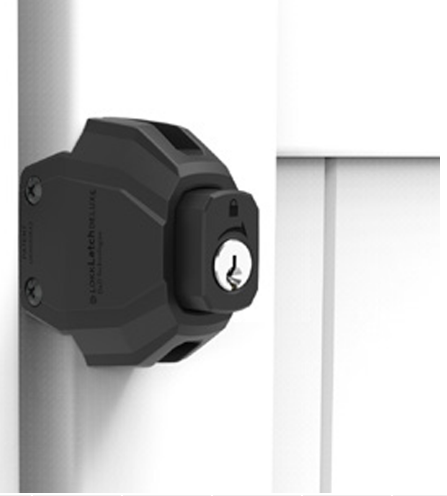

Side-fixing legs provide easy fitting alignment and extra fixing strength. The two-part design provides an External Access Button that allows street-side entry. Conveniently, the two security lock cylinders can be rekeyed to match other household doors and accesses. (See your locksmith prior to latch installation.) The D&D LokkLatch® DELUXE Series 3 also offers vertical and horizontal adjustment to ensure proper fit and reliable operation. It can be fitted to all square-posted gates (up to 150mm deep) and can be adapted to left- or right-swinging gates.

D&D TruClose® Safety Gate Hinges are the worlds most trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The engineering-grade polymers and a stainless-steel closing springs deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, D&D TruClose hinges are ideal for child safety gates around swimming pools*, childcare centres, schools, homes, playgrounds and hotels/resorts.

Features

• Operates and locks from both sides of gate
• New fitting jig provides easier, faster installation
• New ball-joint Connecting Rod quickens installation
• Short latch-bolt included (Long latch bolt models available)
• Requires only one drilled hole through post
• Dual 6-pin locks can be rekeyed to match doors etc.
• Includes 125mm and 150mm connector rods (a spare if needed)
• Vertically and horizontally adjustable
• Industrial-strength polymer construction
• 316 marine-grade stainless components
• Fits fence posts 38mm to 150mm deep

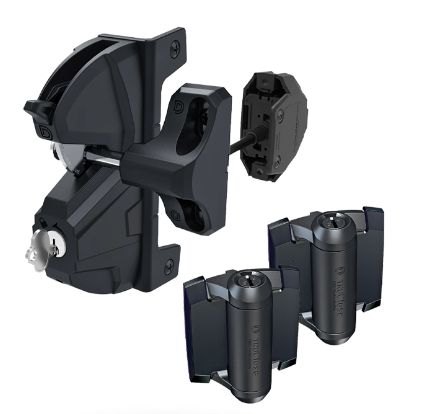

• Includes one pair Truclose hinges - TCA1S3
• Supplied in trade pack

Specifications

• Gate Application: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Single, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Gate Material: Aluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
• Approximate Gate Size: Any Size
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size 38mm–150mm
• Ideal Gate Gap: 19mm (Short Bolt)
• Fixing Method: Screw-On
• Lock Type: Rekeyable (to match door locks)

* When installing TruClose® hinges to a swimming pool gate always confirm any safety requirements with your local Council or safety authorities to ensure compliance.
​​​​​​​
Finish
Black
