D&D Technologies DD TECH SHUTIT BADASS BARREL VERSAWELD HINGE

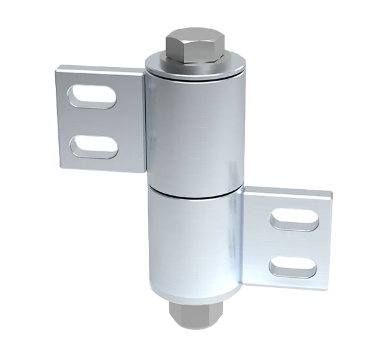

D&D SHUT IT® BadAss Barrel Weld-On Hinge

The D&D SHUT IT® BadAss Barrel Hinge is the strongest and most versatile gate hinge on the market. Ideal for nearly all heavy-duty gate installations the D&D SHUT IT® BadAss Barrel Hinge is the game changer in the industry. The gate hinge can be installed where a full 180 degree gate opening is required and has the ability to reduce the gap between end post and gate to under 13mm.

Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.

High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.

Features

• The strongest and most versatile hinge on the market
• Ideal for nearly all flat post installations
• Bolt-on and weld-on installations
• Swings 180º if required
• Load rating per gate: 1,360kg (3,000 lbs)
• Maximum gate weight: 680kg (1,500 lbs)
• Steel bracket and body
• Hinge weight 1.8kg

Specification

• Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type: Non Self-Closing
• Gate Material: Steel or Ornamental Iron
• Approximate Gate Width 2000mm
• Approximate Gate Height 3000mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 40mm+
• Ideal Gate Gap: Fixed at 13mm
• Fixing Method: Bolt-On, Weld-On

Finish
Zinc
