D&D SURECLOSE® Centre Mount Hinges and Hinge Closers

An internally mounted, hydraulic, gate hinge-closers.

The hydraulic D&D SURECLOSE® Gate closers and hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint D&D SURECLOSE® gate closers and hinges.

The D&D SURECLOSE® SM hinge was designed for large industrial-style gates, such as found on commercial and heavy residential gates, plus estate gates and gates around factories, schools, access control areas and driveways that do not require self-closure. The D&D SURECLOSE® SM model features extra-large hinge pins and dual thrust bearings designed for high loads.

Save money when D&D SURECLOSE® SM is used as the bottom, load-bearing hinge along with a D&D SURECLOSE® 57 or D&D SURECLOSE® 108 closer. All D&D SURECLOSE® hinges and closers come packaged with the gate mounting bracket included.

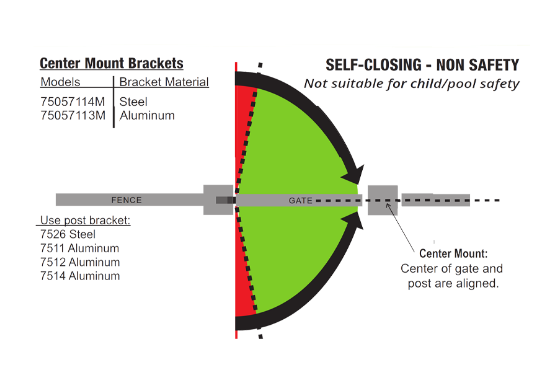

Post mounting brackets sold separately.

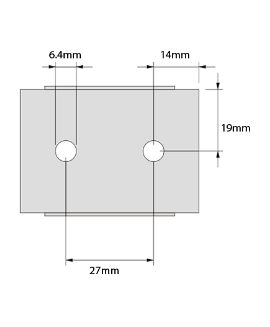

Aluminium gate mounting brackets: Pre-drill using 5mm drill bit and use #14 countersunk through-bolts or fasteners. See post brackets for their fastener requirements

Features

• Powerful, hidden hydraulics in a compact unit
• Hinge/closer

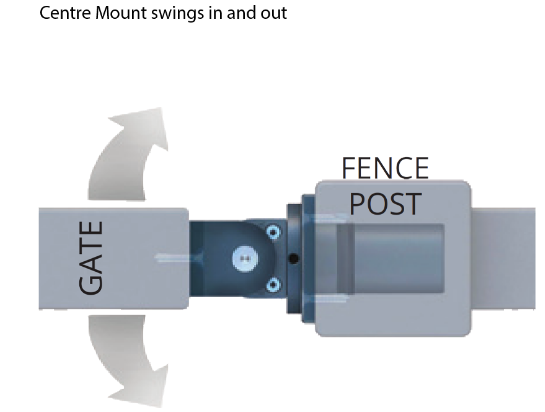

• Centre mounting
• Maintenance-free
• Self closing hinge from 85°
• Will hold gates open at 90°
• Maximum opening angle 90°
• Multiple adjustment options
• Prevents gate slam noise and gate damage
• High corrosion resistance
• 50 Micron anodised (Aluminium Components)
• Aluminium screw on mounting
• Supplied in trade pack

Note: All D&D SureClose® hinges and closers come packaged with the gate mounting bracket included.
When installing this hinge to a swimming pool gate always confirm any safety requirements with your local Council or authorities to ensure compliance.

Specifications

• Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Gate Type: Self-Closing
• Gate Material: Aluminium, Steel or Ornamental Iron

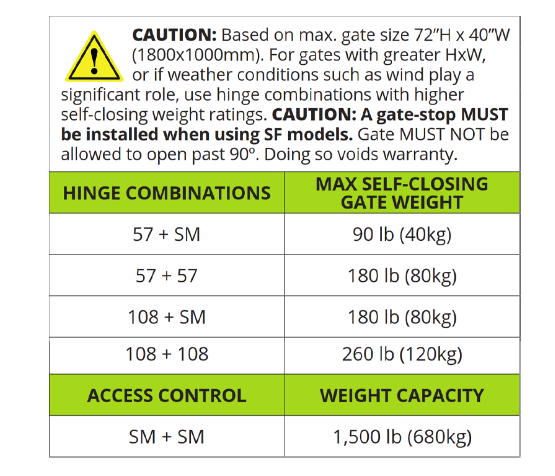

• Self-Closing Gate Weight: Up to 80kg (180lbs) in combination with hinge (refer chart)
• Approximate Gate Width:1200mm
• Approximate Gate Height: 1800mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 50mm+
• Ideal Gate Gap: 64mm to 76mm

Finish
Black Anodised
