D&D Technologies DD TECH TRUCLOSE TCA1 + WITH ALIGN LEG & WITHOUT LEG BLACK TRIM

D&D TRUCLOSE® REGULAR Hinges

An adjustable, self closing hinge for pool and safety gates.

D&D TRUCLOSE® REGULAR Safety Gate Hinges are the worlds most trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The engineering-grade polymers and a stainless-steel closing springs deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, D&D TRUCLOSE® REGULAR hinges are ideal for child safety gates around swimming pools*, childcare centres, schools, homes, playgrounds and hotels/resorts. D&D TRUCLOSE® REGULAR Hinge models are ideal for most square-posted gates weighing up to 30kg.

D&D TRUCLOSE® REGULAR Hinges are quick and easy to install and to adjust for self-closing speed. They come standard with Black trim covers, which means there are no visible fasteners. Optional Polished or Chrome metallic trim covers are also available. The TruClose® REGULAR hinges come in a range of other options, including models with side-fixing legs (to assist speedy installation and extra fixing strength) and a MiniMulti version offering 3-way adjustment (vertical, horizontal and tension adjustment) in square- and round-post versions.

D&D has sold millions of these award-winning D&D TruClose® Safety Gate Hinges worldwide.

Features

• For pool and safety gates install a hinge safety cap (optional - not included)
• D&D patented tension adjustment
• Two quick fit alignment legs for fast alignment and added strength
• Quick and easy to install
• Self-closes gates up 30kg (66 lbs)
• Self lubricating durability requiring no maintenance
• Will not rust, bind, sag or stain

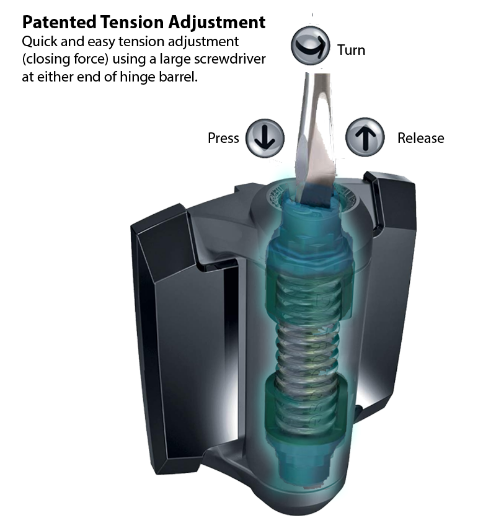

• Simple, adjustable closing tension (from either end of hinge)
• Super-strong polymer and stainless steel construction
• Internal stainless steel closing spring
• UV-stabilised and self-lubricating durability
• Decorative black trim covers included (no visible fasteners)

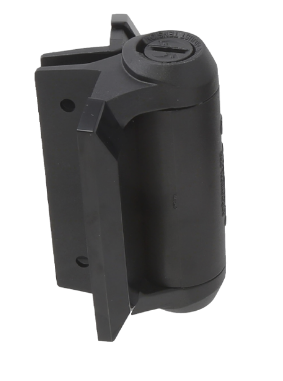

• 2 side-fixing legs for faster alignment and added strength

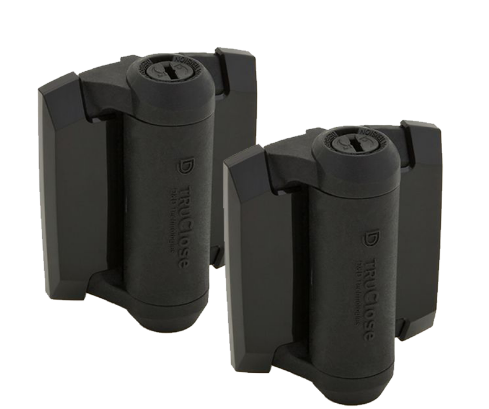

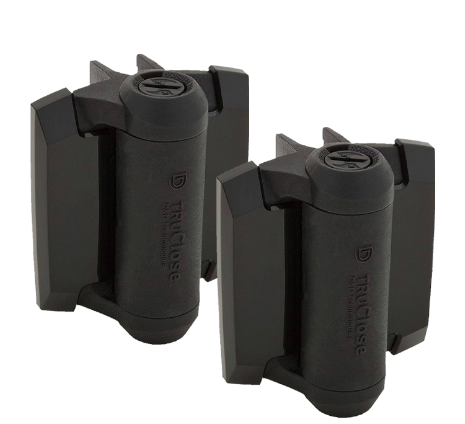

• Hinges sold as pairs
• Supplied in trade pack - 1 pair

* When installing D&D TruClose® hinges to a swimming pool gate always confirm any safety requirements with your local Council or safety authorities to ensure compliance.

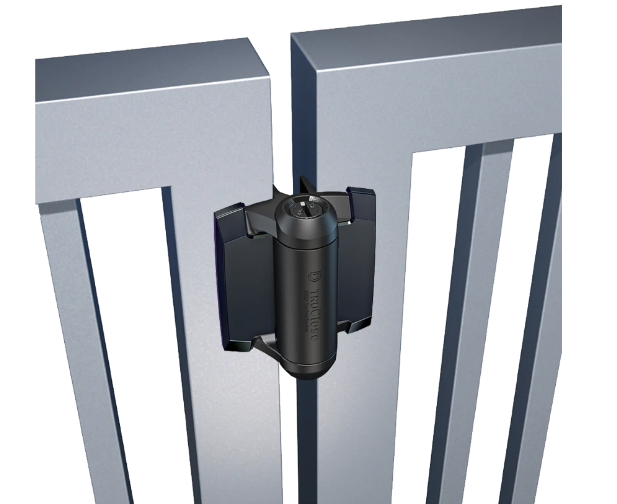

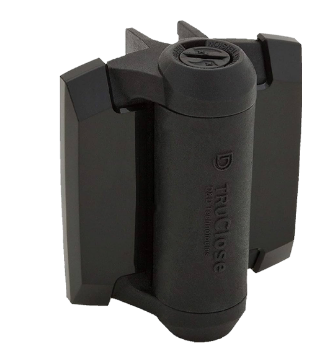

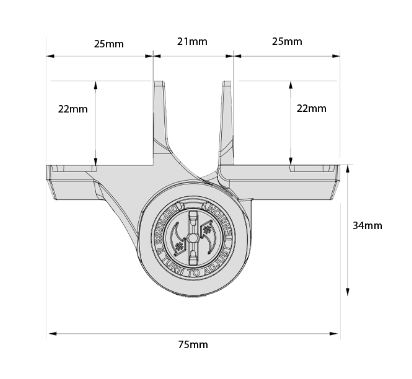

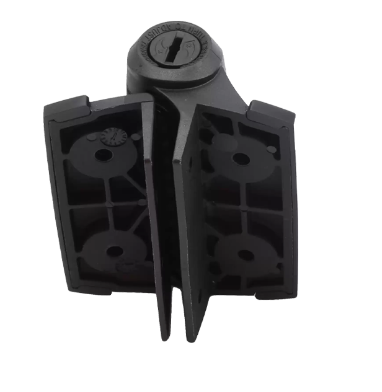

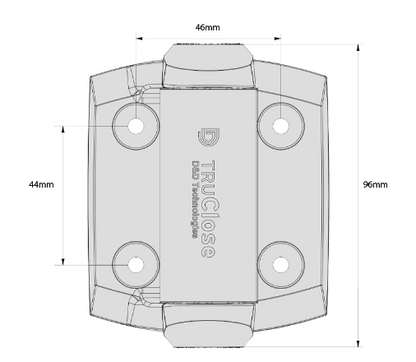

Specifications WITH ALIGN LEG

• Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate,Pet Gate, Playground Gate, Security Gate, Privacy Gate, Safety Gate
• Gate Type: Self-Closing
• Gate Material: Aluminium, Steel/Ornamental Iron
• Self-Closing Gate Weight Up to 30kg (66lbs)
• Approximate Gate Width: 1200mm
• Approximate Gate Height: 1800mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 25mm+
• fixedGate Gap: 21mm
• Fixing Method: Screw-On

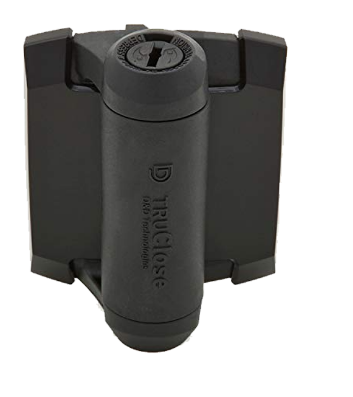

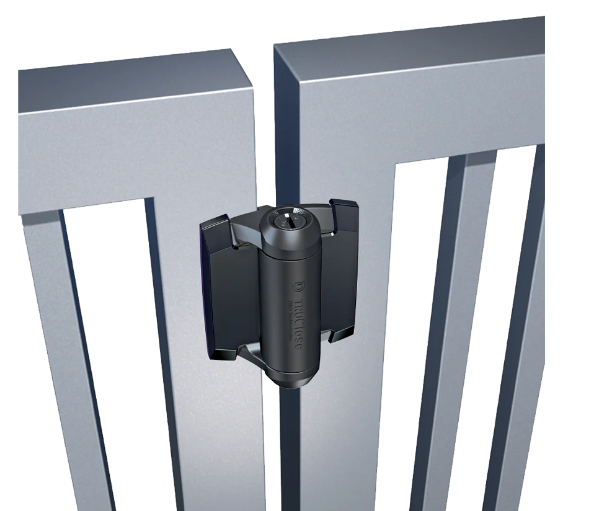

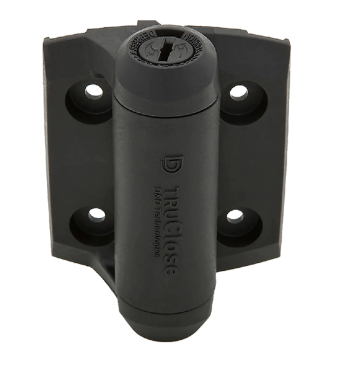

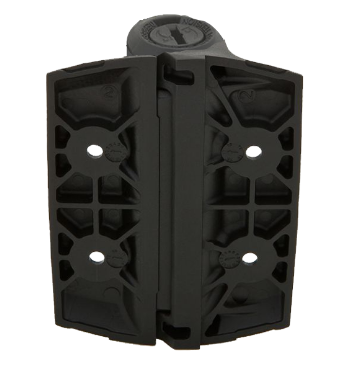

Specifications WITHOUT LEG

• Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate,Pet Gate, Playground Gate, Security Gate, Privacy Gate, Safety Gate
• Gate Type: Self-Closing
• Gate Material: Aluminium, Steel/Ornamental Iron
• Self-Closing Gate Weight Up to 30kg (66lbs)
• Approximate Gate Width: 1200mm
• Approximate Gate Height: 1800mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 25mm+
• Ideal Gate Gap: 19mm
• Gap Variance: 9mm to 22mm
• Fixing Method: Screw-On

Finish

Black
