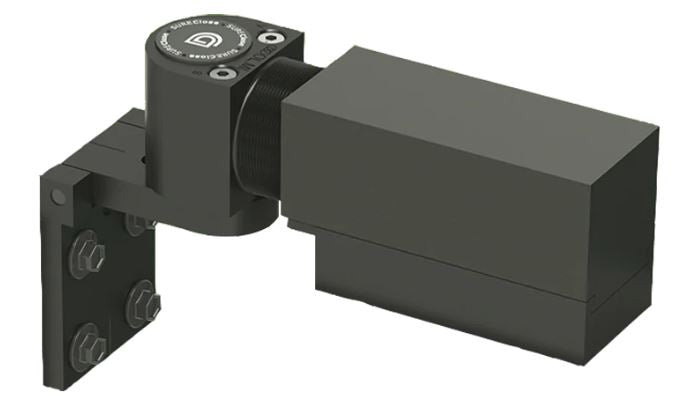

D&D SURECLOSE® EASY Gate Closer

An hydraulic gate closer for center-hinge mounted gates.

The Hydraulic D&D SureClose® Gate Closers and Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint D&D SureClose® gate closers and hinges. The D&D SureClose® EASY model is specifically designed for new or existing gates using centre mounted pivot or barrel hinges.

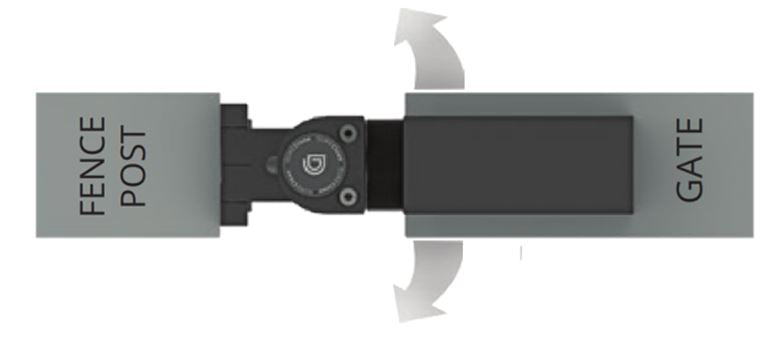

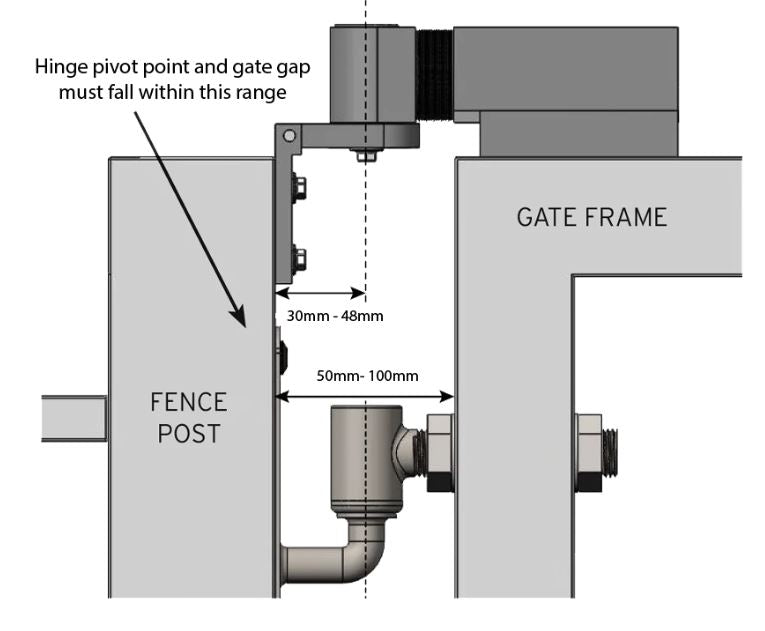

The D&D SureClose® EASY is not a hinge as with other D&D SureClose® models; it is an add-on device that can be used in many retrofit applications without the need to replace the existing hinges. Easy to install, it mounts to the top of gates that have a gate gap from 50-100mm.

Features

• Add-on hydraulic closer - smooth and quiet
• Usable with most center-mounted hinge types
• Ideal for new or existing gates
• Self-closes gates up to 80kg (180lb) – See Chart
• Easy to install: mounts onto top of gate
• Horizontally adjustable - up to 100mm gate gaps
• Same features as all 108SF closers

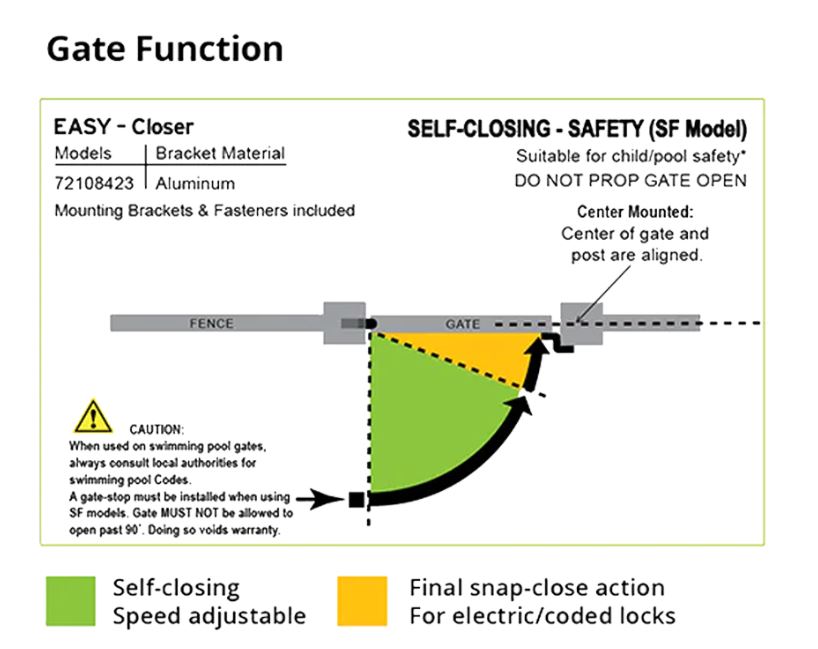

• Self closing hinge from 90º
• Will not hold gates open
• Maximum opening angle 90°
• Maintenance-free - never add fluid
• High corrosion resistance - thick 50 micron hard anodize
• Supplied in trade pack

CAUTION: When installing SureClose® Closers or Hinges to a swimming pool gate always confirm any safety requirements with your local Council or authorities to ensure compliance.

Specifications

• Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
• Gate Type: Self-Closing
• Gate Material: Aluminium, Steel or Ornamental Iron
• Self-Closing Gate Weight: Up to 80kg (180lbs)
• Approximate Gate Width 1200mm
• Approximate Gate Height: 1800mm
• Gate Frame/Post Shape: Square-to-Square
• Minimum Post Size: 50mm+
• Ideal Gate Gap: 50mm to 100mm
• Fixing Method: Aluminium Screw-On

Finish
Black Anodised
