HENDERSON IMPERIAL BOTTOM ROLLER 200KG (STAINLESS STEEL ) & 150KG (NYLON)

HENDERSON IMPERIAL BOTTOM ROLLER 200KG (STAINLESS STEEL ) & 150KG (NYLON)

Product Description:

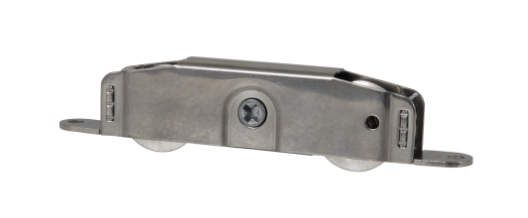

Henderson Imperial Bottom Rolling

For timber sliding doors, interior and exterior applications.Designed for straight sliding partitions or fully glazed patio doors and flushed panel doors.

Suited for where the supporting structure or lintel is insufficient for the weight of the door or where headroom is limited.
To cover the width of opening, any number of doors can be used on single or multiple lines or rail, doors can slide to one or both sides. Where fitted externally, a canopy is recommended to protect the top guide channel, brackets and top guide rollers.

Features : BOTTOM

• Suits timber doors
• Maximum door weight 200kg per leaf
• Stainless steel
• Precision stainless steel ball bearing wheels
• Side access adjustment
• Black and white plug included

Features : TOP

• Suits timber doors
• Maximum door weight 200kg per leaf
• Top plate fitting
• Stainless steel
• Double adjustable anti-rattle nylon rollers

Door Specification
For Individual Doors:

• Max Door Weight 200kg
• Minimum Door Thickness 40mm
• Maximum Door Height 3000mm

Doors can be constructed with bottom rails of at least 150mm depth to accommodate theconcealed, mortised bottom rollers. Door weight is carried on the floor permitting the useof a light overhead structure.
