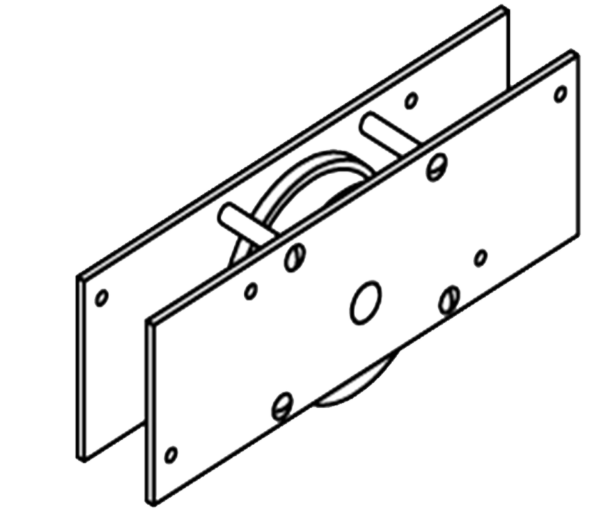

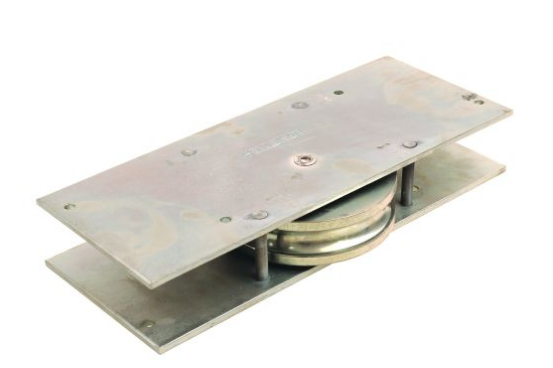

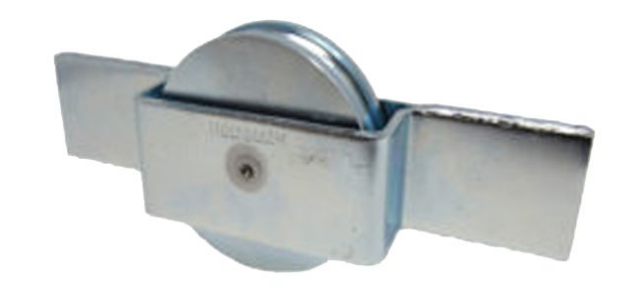

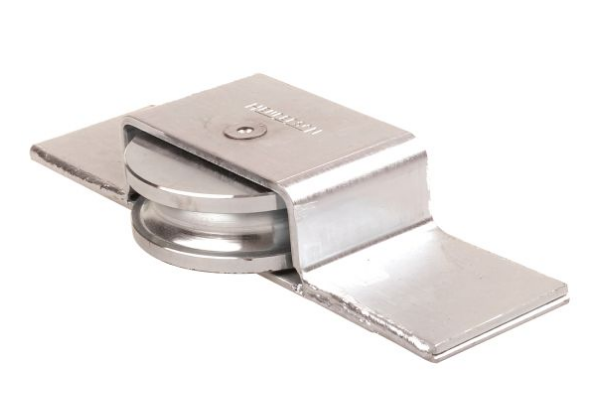

HENDERSON STERLING BOTTOM ROLLER 800KG & 225KG ZINC PLATED

Henderson Sterling Bottom Rollers

Our Sterling range of bottom rolling sliding door hardware systems is ideal for heavy commercial and industrial applications such as warehouses, agricultural buildings and aircraft hangars. This product is particularly suitable where the supporting structure or lintel is insufficient for the weight of the door or headroom is limited.

Five systems are available in total with the wooden door application catering for a weight of up to 2000kg and the metal door application up to 8000kg.

The product is suitable for single or multiple lines of track and the top guide channel may be soffit or face fixed.

Features

• Zinc plated
• Suitable for metal doors
• 2 per door required
• Maximum weight per leaf 800kg & 225kg
• Bolt onfixing
• Suits H99 & H900 top guide channel
• For heavy weight industrial applications

Application
The Henderson Sterling bottom roller system is designed for commercial or industrial straight sliding partions, where exterior timber and metal doors weigh between 350kg and 8000kg. The system is suited for where the supporting structure or lintel is insufficient for the weight of the door or where headroom is limited.Where fitted externally, a canopy is recommended to protect the top guide channel, brackets and top guide rollers

Sterling 350
Maximum weight range for Wood/metal 350kg per leaf
Thickness 44mm to 54mm
Application Interior/Exterior

Sterling 800
Maximum weight range for Wood/metal 800kg per leaf
Thickness 54mm to 63mm

Sterling 2000
Maximum weight range for Wood 2000kg per leaf
Thickness - TBA

Sterling 2000
Maximum weight range for Metal 2000kg per leaf
Thickness 58mm to 70mm

Sterling 3600
Maximum weight range for Metal 3600kg per leaf
Thickness152mm (min.)

Sterling 8000
Maximum weight range for Metal 8000kg per leaf
Thickness152mm (min.)
