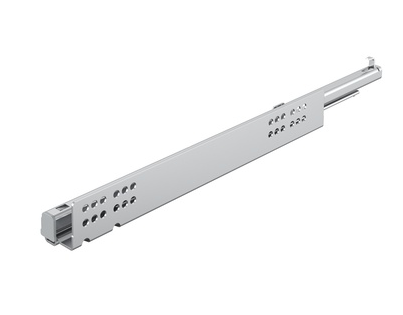

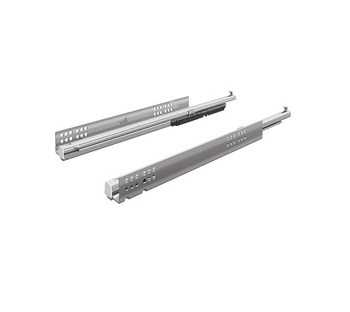

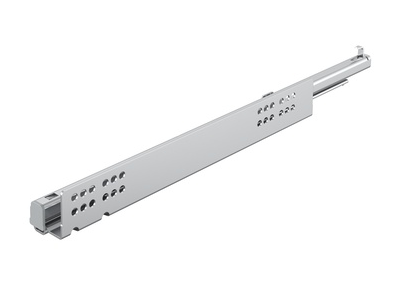

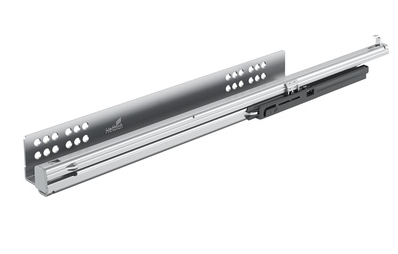

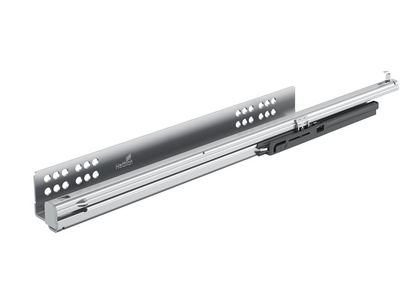

Hettich Germany Quadro V6 with Silent System, Full Extension Runner for Wooden Drawer 30 Kgs Set ( left and Right ) Length : 280mm ,300mm ,350mm,380mm,400mm ,420mm ,450mm
Quadro V6 with Silent System, full extension runner for wooden drawer 30Kgs Set ( left and Right ) (slide on installation, drawer
side profile thickness more than or 16 mm)

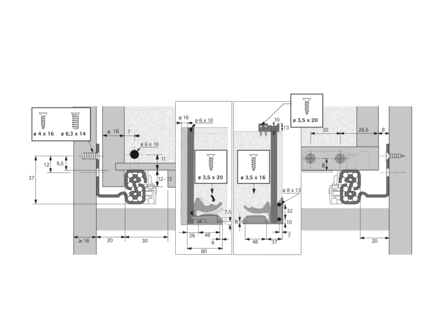

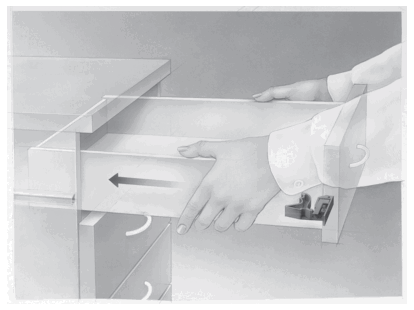

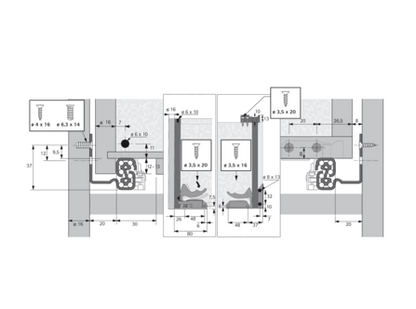

Slide on installation with catches and tool-less height adjustment
Integrated Silent System
Optional: catch and plug for pull-out shelves
Optional: Pull-out shelf locating catch
Suitable for drawers with a side profile thickness of up to 16 mm
Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
Load capacity to EN 15338, Level 3
Galvanised steel
Technical details
Load capacity kg
20 kg
Installed width EB
20
Hole spacing b1
160 mm
Nominal length
280 mm
Mounting side
left/Right
Type of runner
Concealed runner
Type of drawer runner
Full extension runner
User friendly features
Silent System
Minimum cabinet body depth KT
293 mm
Type of installation
slide on installation
Installed width (side profile thickness)
EB 20 (drawer side profile thickness ≤ 16mm)
Components
Drawer runners
EAN
4023149379260
Order no.
9118026
PU
20
Technical details
Load capacity kg
25 kg
Installed width EB
20
Hole spacing b1
192 mm
Nominal length
300 mm
Mounting side
left/Right
Type of runner
Concealed runner
Type of drawer runner
Full extension runner
User friendly features
Silent System
Minimum cabinet body depth KT
313 mm
Technical details
Load capacity kg
25 kg
Installed width EB
20
Hole spacing b1
192 mm
Nominal length
350 mm
Mounting side
left/Right
Type of runner
Concealed runner
Type of drawer runner
Full extension runner
User friendly features
Silent System
Minimum cabinet body depth KT
363 mm
Technical details
Load capacity kg
25 kg
Installed width EB
20
Hole spacing b1
224 mm
Nominal length
380 mm
Mounting side
left/Right
Type of runner
Concealed runner
Type of drawer runner
Full extension runner
User friendly features
Silent System
Minimum cabinet body depth KT
393 mm
Technical details
Load capacity kg
30 kg
Installed width EB
20
Hole spacing b1
224 mm
Nominal length
400 mm
Mounting side
left/Right
Type of runner
Concealed runner
Type of drawer runner
Full extension runner
User friendly features
Silent System
Minimum cabinet body depth KT
413 mm
Technical details
Load capacity kg
30 kg
Installed width EB
20
Hole spacing b1
224 mm
Nominal length
420 mm
Mounting side
left/Right
Type of runner
Concealed runner
Type of drawer runner
Full extension runner
User friendly features
Silent System
Minimum cabinet body depth KT
433 mm
Technical details
Load capacity kg
30 kg
Installed width EB
20
Hole spacing b1
256 mm
Nominal length
450 mm
Mounting side
left/Right
Type of runner
Concealed runner
Type of drawer runner
Full extension runner
User friendly features
Silent System
Minimum cabinet body depth KT
463 mm
Length - Available in 13 Sizes : 280mm ,300mm ,350mm,380mm,400mm ,420mm,450mm,480mm ,500mm ,520mm, 550mm ,580mm ,600mm
