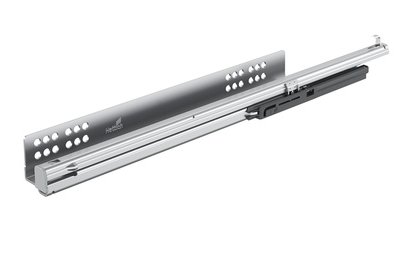

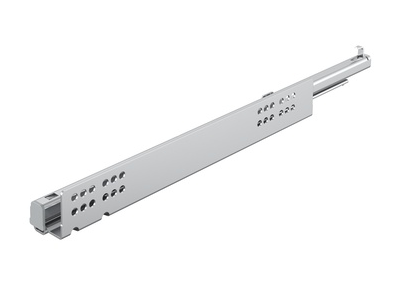

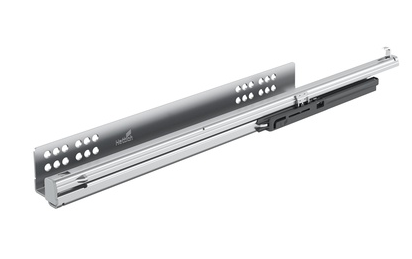

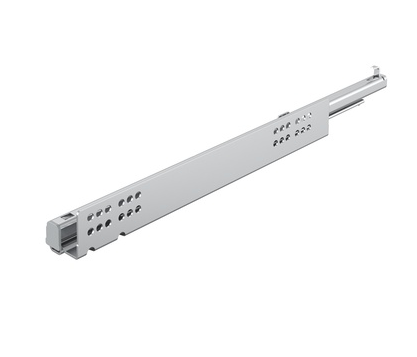

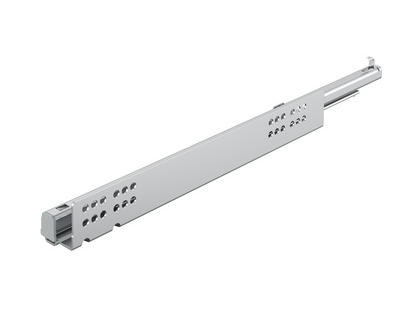

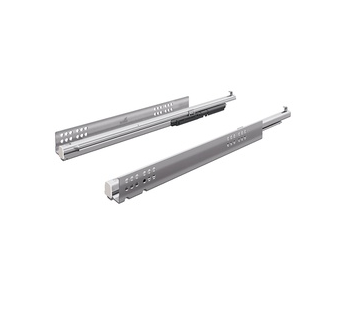

Hettich Germany Quadro V6 with Silent System, Full Extension Runner for Wooden Drawer 30Kgs Set ( Left and Right ) Length : 480mm ,500mm ,520mm, 550mm ,580mm ,600mm
SKU: 9118039
Quadro V6 with Silent System, full extension runner for wooden drawer 30Kgs Set ( left and Right ) (slide on installation, drawer
side profile thickness more than or 16 mm)

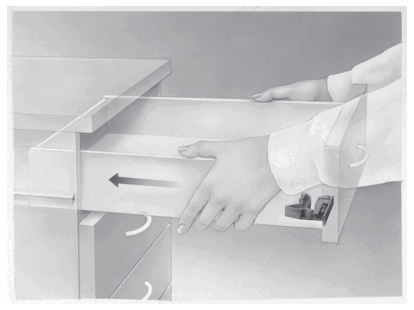

- Slide on installation with catches and tool-less height adjustment
- Integrated Silent System
- Optional: catch and plug for pull-out shelves
- Optional: Pull-out shelf locating catch
- Suitable for drawers with a side profile thickness of up to 16 mm
- Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
- Load capacity to EN 15338, Level 3
- Galvanised steel
Technical details
| Load capacity kg | 30 kg |
| Installed width EB | 20 |
| Hole spacing b1 | 256 mm |
| Nominal length | 480 mm |
| Mounting side | left/Right |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Silent System |
| Minimum cabinet body depth KT | 493 mm |
| Type of installation | slide on installation |
| Installed width (side profile thickness) | EB 20 (drawer side profile thickness ≤ 16mm) |
| Components | Drawer runners |
| EAN | 4023149379604 |
| Previous order no. | 9080236 |
| Order no. | 9118039 |
| PU | 20 |
Technical details
| Load capacity kg | 30 kg |
| Installed width EB | 20 |
| Hole spacing b1 | 288 mm |
| Hole spacing b2 | 224 mm |
| Nominal length | 500 mm |
| Mounting side | left/Right |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Silent System |
| Minimum cabinet body depth KT | 513 mm |
Technical details
| Load capacity kg | 30 kg |
| Installed width EB | 20 |
| Hole spacing b1 | 288 mm |
| Hole spacing b2 | 224 mm |
| Nominal length | 520 mm |
| Mounting side | left/Right |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Silent System |
| Minimum cabinet body depth KT | 533 mm |
Technical details
| Load capacity kg | 30 kg |
| Installed width EB | 20 |
| Hole spacing b1 | 288 mm |
| Hole spacing b2 | 224 mm |
| Nominal length | 550 mm |
| Mounting side | left/Right |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Silent System |
| Minimum cabinet body depth KT | 563 mm |
| Type of installation | slide on installation |
| Installed width (side profile thickness) | EB 20 (drawer side profile thickness ≤ 16mm) |
Technical details
| Load capacity kg | 25 kg |
| Installed width EB | 20 |
| Hole spacing b1 | 352 mm |
| Nominal length | 580 mm |
| Mounting side | left/Right |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Silent System |
| Minimum cabinet body depth KT | 593 mm |
Technical details
| Load capacity kg | 25 kg |
| Installed width EB | 20 |
| Hole spacing b1 | 352 mm |
| Nominal length | 600 mm |
| Mounting side | left/Right |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Silent System |
| Minimum cabinet body depth KT | 613 mm |
Length - Available in 13 Sizes : 280mm ,300mm ,350mm,380mm,400mm ,420mm,450mm,480mm ,500mm ,520mm, 550mm ,580mm ,600mm
