Hettich Germany Veosys 105° stainless steel hinge, overlay, TH - drilling pattern 52 x 5.5 mm, for screwing on with Mounting Plate

Brand: Hettich Germany

SKU: 9289590 & 9289598

$18.06
Unit price per

Tax included. Shipping calculated at checkout.

Please note that this product may be a special order. Please double check it meets your requirements before ordering. More information can be found in our Refund Policy.

Our despatches are made directly from the warehouse. Please contact us should you wish to see a product as we don't stock all products at our store.

Hettich Germany Veosys 105° stainless steel hinge, overlay, TH - drilling pattern 52 x 5.5 mm, for screwing on with Mounting Plate

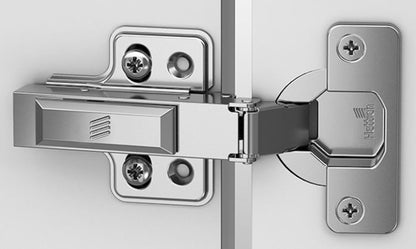

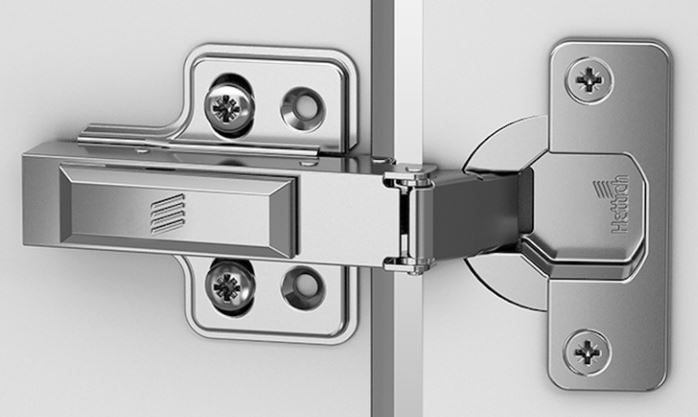

Concealed hinge with clip on installation and integrated Silent System
Quality classification under EN 15570, Level 2
Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN 1670
For door thickness of 14 - 22 mm
Cup diameter 35 mm
Cup depth 11.5 mm
Integrated overlay adjustment + 2.5 mm / - 2.5 mm
Integrated depth adjustment + 2 mm / - 1.5 mm

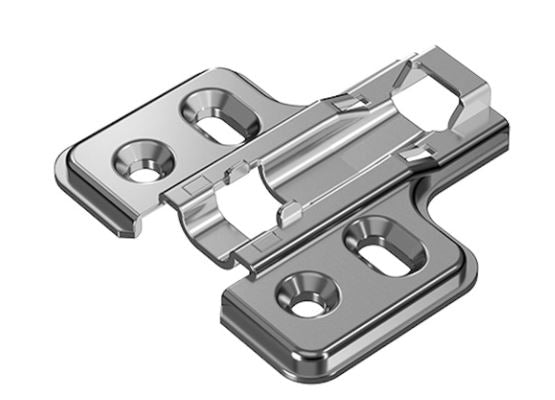

Height adjustment at mounting plate
Stainless steel
