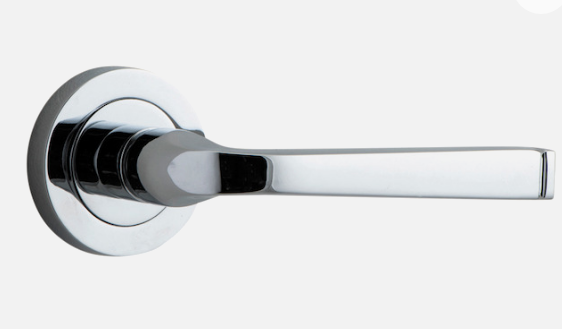

Iver Annecy Door Lever 0324 Round Rose Polished Chrome - Passage ,Privacy & Entrance

Iver Annecy Door Lever 0324 Round Rose Polished Chrome - Passage ,

Privacy & Entrance

Inspired by traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice. A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time.

The Annecy lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function

Please look at other listings of other colors or contact us for further information

Signature Brass

Door Function

Passage  Privacy  Entrance

For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.

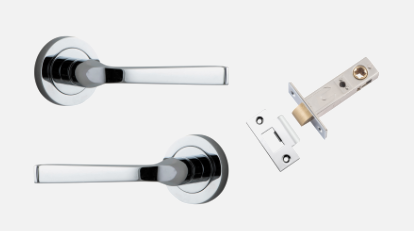

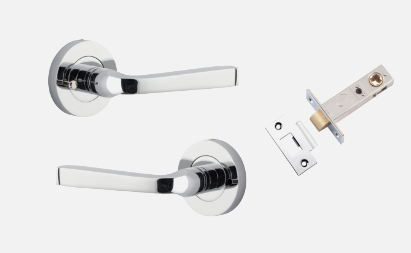

What's in the box passage
2 x Levers / Knobs on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
18 x Screws
1 x Standard Spindle
2 x Sprung Spindles
4 x Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
1 x Allen Key *
2 x Grub Screws*
*With Square Rose only

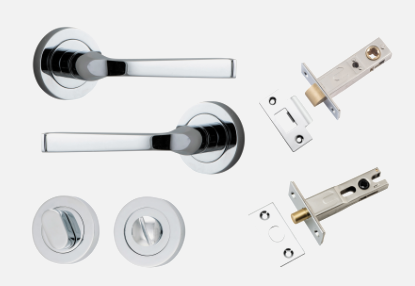

What's in the box privacy
2 x Levers on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Turn Oval Concealed Fix Round / Square
1 x Privacy Bolt Round Backset 60mm
1 x Standard Spindle
2 x Sprung Spindles
2 x Privacy Spindles
39 x Screws
2 x Dust Boxes
2 x Allen Keys*
4 x Grub Screws*
1 x Drill Template
1 x Instruction Manual
*With Square Rose only

What's in the box Inbuilt privacy kit
2 x Levers on Round / Square Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manual

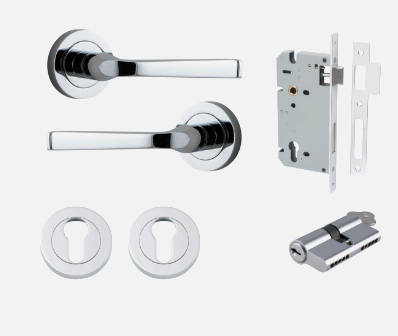

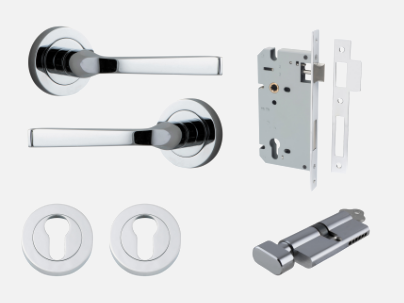

What's in the box Entrance
2 x Levers / Knobs on Round / Square Roses of your choice
1 x Euro Mortice Lock CTC 85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
2 x Euro Escutcheon Concealed Fix Round / Square
1 x Euro Cylinder 5 Pin Dual Function or Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
37 x Screws
1 x Dust Box
2 x Allen Keys*
4 x Grub Screws*
1 x Drill Template
2 x Instruction Manuals
*With Square Rose only

Features & Benefits

Cycle Tested
Successfully tested to meet highest durability rating (500,000 cycles)
Fire Rated
Successfully fire rated to 2 hours*
* Accessories are not fire rated

Notes : -

All Annecy levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product comes with face fix wood screws, tie bolts and privacy tube latch. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.

Specifications
Backset   :  60mm
Backplate Diameter  : 58mm
Height   :    58mm
Width    :    58mm
Length   :    117mm
Projection :  66mm
Centre to centre  : 41.5mm

PLEASE CONTACT US FOR TRADE / BULK PRICING & ITEMS YOU CAN'T FIND ON OUR SITE.
