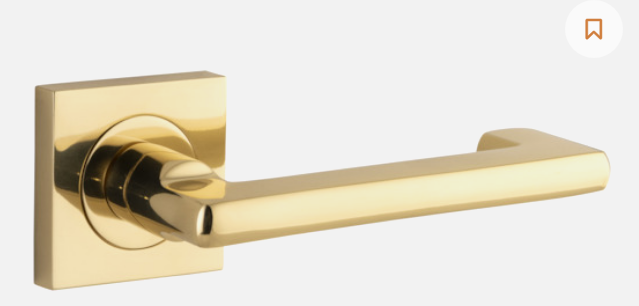

Iver Baltimore Door Lever 21170 Return Square Rose Polished Brass - Passage ,Privacy & Entrance
SKU: 21170
Iver Baltimore Door Lever 21170 Return Square Rose Polished Brass - Passage ,
Privacy & Entrance
The Baltimore Return lever with inbuilt privacy lock features sleek lines and is fire-rated to 2 hours, making it the perfect option for any commercial project. Available in selected finishes and complementing the Baltimore range of products.
60mm tube latch to suit inbult privacy is provided.
Please note that the Baltimore Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.
Please look at other listings of other colors or contact us for further information
Door Function
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.

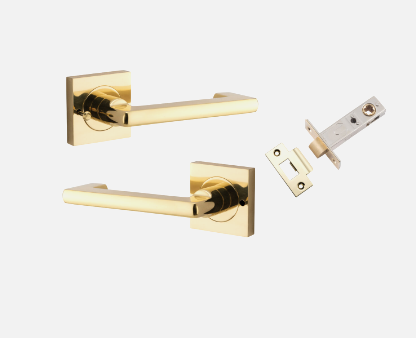

What's in the box Privacy kit
2 x Levers on Round / Square Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manualc
Features & Benefits
Fire Rated
Successfully fire rated to 2 hours*
* Accessories are not fire rated
Notes
All Baltimore Return levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). The Baltimore Return lever is compliant with Australian Standards AS 1428.1-2009 Design for Access & Mobility. For more details contact a member of our sales team.
This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Inbuilt privacy lock options are available for levers on round and square rose.
Specifications passage
Height: | 52mm |
---|---|
Width: | 52mm |
Length: | 128mm |
Projection: | 57mm |
Centre to centre: | 41.5mm |
Specifications privacy kit
Backset: | 60mm |
---|---|
Height: | 52mm |
Width: | 52mm |
Length: | 128mm |
Projection: | 57mm |
Centre to centre: | 41.5mm |
