Iver Oslo Door Lever 10344 Rectangular Backplate Polished Brass - Passage ,Privacy & Entrance

Iver Oslo Door Lever 10344 Rectangular Backplate Polished Brass - Passage ,Privacy

 & Entrance

The Oslo lever is both fire-rated to 2 hours and DDA compliant, making it the perfect option for any commercial project. Available in Iver's full range of finishes and complementing other Iver products and accessories.

Please look at other listings of other colors or contact us for further information

Door Function

Passage  Privacy  Entrance

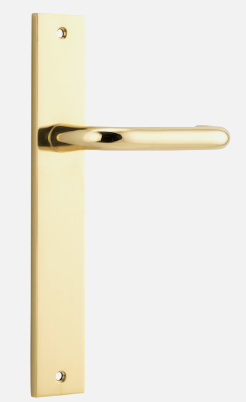

For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.

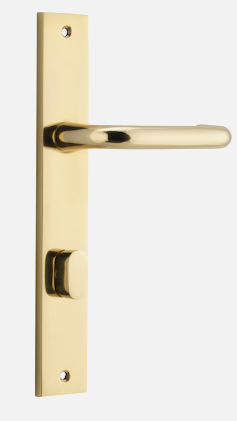

For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.

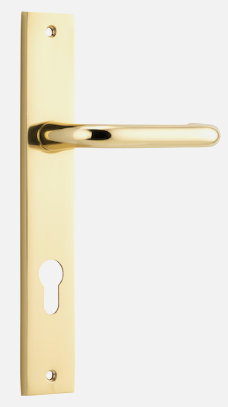

For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.

What's in the box Passage kit
2 x Oslo Levers on Rectangular Backplate in Polished Brass
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

What's in the box Privacy kit
2 x Oslo Levers on Rectangular Backplate in Polished Brass
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual

What's in the box Entrance kit
2 x Oslo Levers on Rectangular Backplate in Polished Brass
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

Notes : -

All Oslo levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). The Oslo lever is compliant with Australian Standards AS 1428.1-2009 Design for Access & Mobility. For more details contact a member of our sales team.

This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.

Inbuilt privacy lock options are available for levers on round and square rose.

Features & Benefits
Fire Rated
Successfully fire rated to 2 hours*
* Accessories are not fire rated

Specifications
Height  :    240mm
Width  :    38mm
Projection  :    54mm
Centre to centre  :    205mm
