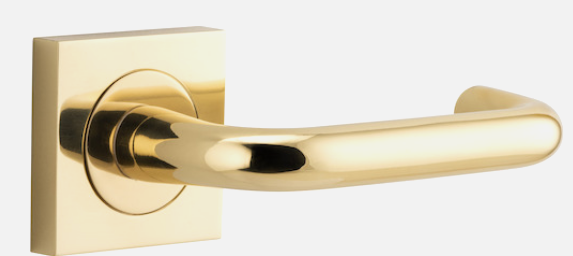

Iver Oslo Door Lever 20360 Square Rose Backplate Polished Brass - Passage and Privacy
SKU: 20360
The Oslo lever is both fire-rated to 2 hours and DDA compliant, making it the perfect option for any commercial project. Available in Iver's full range of finishes and complementing other Iver products and accessories.
Please look at other listings of other colors or contact us for further information
Finish
Brushed Brass Brushed Chrome Distressed Nickel Matt Black Polished Brass Polished Chrome Polished Nickel Satin Nickel Signature BrassBackplate
Passage Privacy
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.

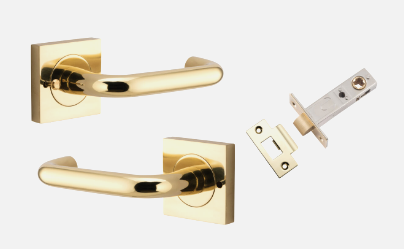

What's in the box Privacy kit
2 x Levers on Round / Square Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manualc
Notes : -
All Oslo levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). The Oslo lever is compliant with Australian Standards AS 1428.1-2009 Design for Access & Mobility. For more details contact a member of our sales team.
This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Inbuilt privacy lock options are available for levers on round and square rose.
Features & Benefits
Fire Rated
Successfully fire rated to 2 hours*
* Accessories are not fire rated
Specifications
Backplate Diameter : 58mm
Height : 58mm
Width : 58mm
Projection : 57mm
