Iver Oxford Door Lever 10704 Rectangular Backplate Signature Brass - Passage ,Privacy & Entrance
With its flowing lines and subtle curve, the Oxford lever will complement a range of settings. Perfect for a new extension on an older home or light, minimal spaces, the Oxford blends various design influences to suit classic and modern homes.
The Oxford lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Please look at other listings of other colors or contact us for further information
Backplate
Door Function
Passage Privacy Entrance
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.

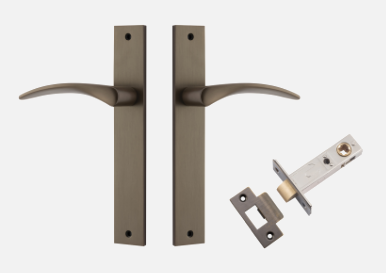

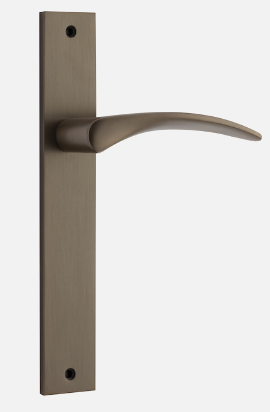

What's in the box Passage kit
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

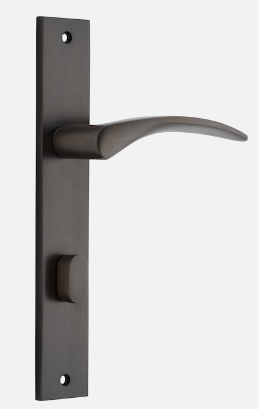

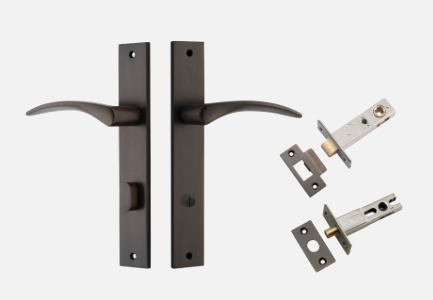

What's in the box Privacy kit
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual

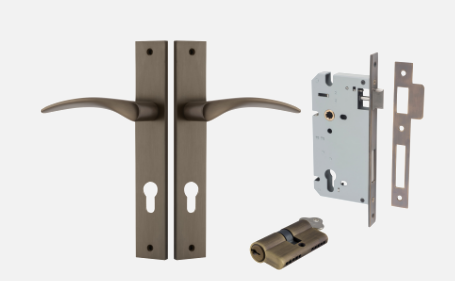

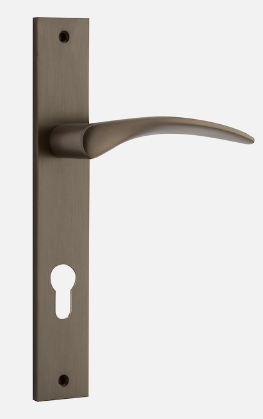

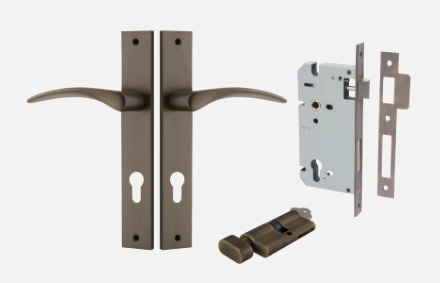

What's in the box Entrance kit
2 x Levers / Knobs on Backplates of your choice
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder 5 Pin Dual Function or Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Features & Benefits
Fire Rated
Successfully fire rated to 2 hours*
* Accessories are not fire rated
Notes : -
All Oxford levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.
Inbuilt privacy lock options are available for levers on round and square rose.
Specifications
Height : 240mm
Width: 38mm
Projection: 60mm
Centre to centre: 205mm
