Iver Sarlat Door Lever 10200 Rectangular Backplate Brushed Gold PVD - Passage ,Privacy & Entrance

The Sarlat lever is a blend of modern beauty and timeless appeal featuring a classic fluted shape, ornamental ring detail and a decorative tip.

The Sarlat lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.

As part of the Sarlat whole-of-home collection, a matching pull handle, door knocker, centre door knob and cabinetware is also available.

Please look at other listings of other colors or contact us for further information

Door Function

Passage  Privacy  Entrance

For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.

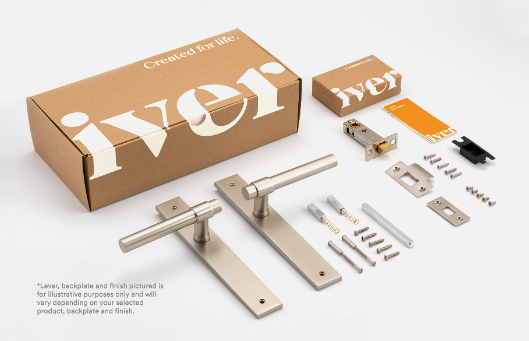

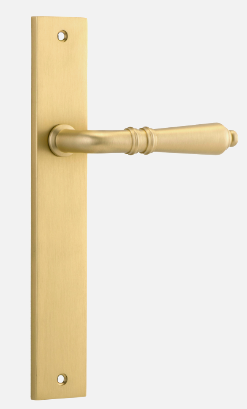

What's in the box Passage kit
2 x Sarlat Levers on Rectangular Backplate in Brushed Gold PVD
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

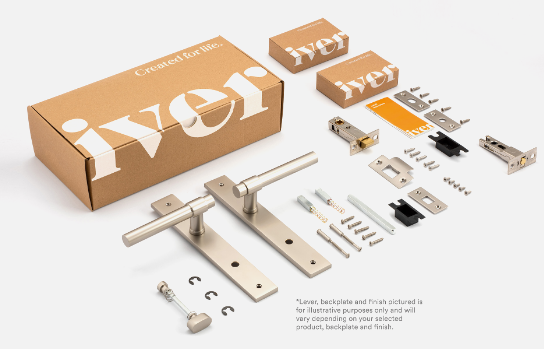

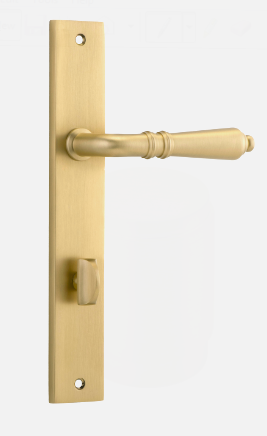

What's in the box Privacy kit
2 x Sarlat Levers on Rectangular Backplate in Brushed Gold PVD
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual

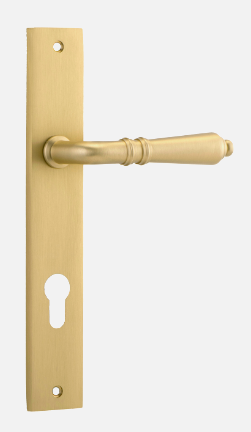

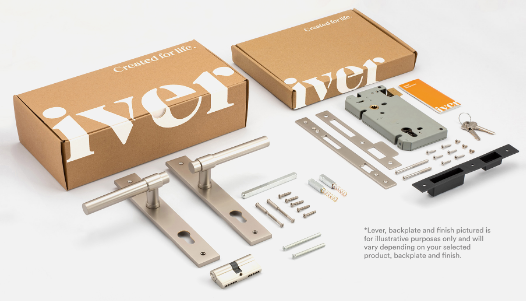

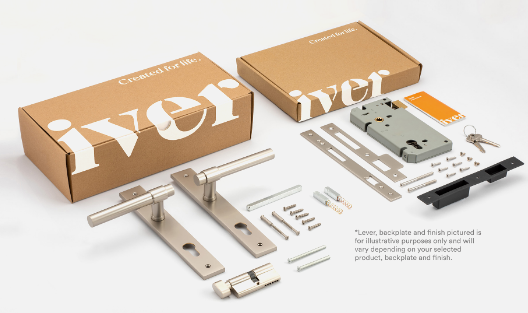

What's in the box Entrance kit
2 x Sarlat Levers on Rectangular Backplate in Brushed Gold PVD
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder 5 Pin Key / Thumb and Dual Function
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

All Sarlat levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

Specifications
Height :    240mm
Width :    38mm
Length :    111mm
Projection :    53mm
Centre to centre :    205mm
