Iver Sarlat Door Lever 16260 Round Rose Backplate Brushed Gold PVD - Passage ,Privacy & Entrance

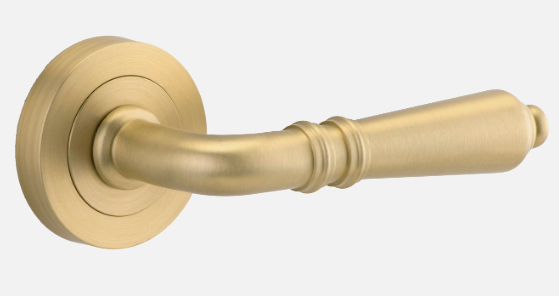

The Sarlat lever is a blend of modern beauty and timeless appeal featuring a classic fluted shape, ornamental ring detail and a decorative tip.

The Sarlat lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.

As part of the Sarlat whole-of-home collection, a matching pull handle, door knocker, centre door knob and cabinetware is also available.

Please look at other listings of other colors or contact us for further information

Passage  Privacy  Entrance

For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.

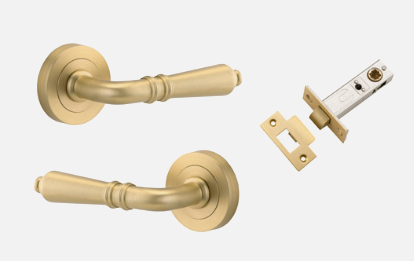

What's in the box Passage kit
2 x Sarlat Levers on Round Rose in Brushed Gold PVD
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
18 x Screws
1 x Standard Spindle
2 x Sprung Spindles
4 x Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual

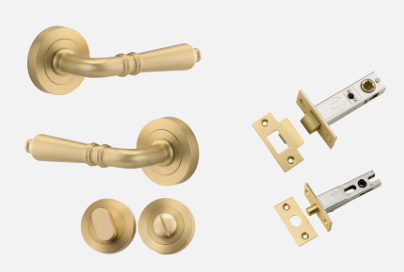

What's in the box Privacy kit
2 x Sarlat Levers on Round Rose in Brushed Gold PVD
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Turn Oval Concealed Fix Round
1 x Privacy Bolt Round Backset 60mm
1 x Standard Spindle
2 x Sprung Spindles
2 x Privacy Spindles
39 x Screws
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual

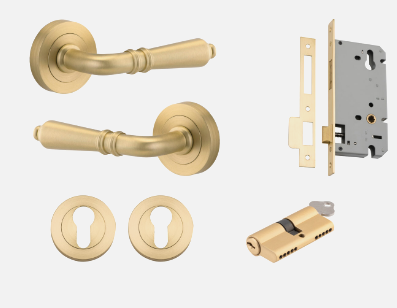

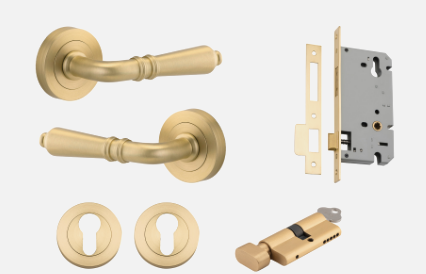

What's in the box Entrance kit
2 x Sarlat Levers on Round Rose in Brushed Gold PVD
1 x Euro Mortice Lock CTC 85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
2 x Euro Escutcheon Concealed Fix Round
1 x Euro Cylinder 5 Pin Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
37 x Screws
1 x Dust Box
1 x Drill Template
2 x Instruction Manuals

Notes : -

All Sarlat levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

Features & Benefits

Fire Rated
Successfully fire rated to 2 hours*
* Accessories are not fire rated

Specifications
Backplate Diameter    :    52mm
Height         :    52mm
Width        :    52mm
Length        :    111mm
Projection     :    56mm
Centre to centre      :    41.5mm
