MILES NELSON COMMERCIAL 87 & 90 LEVER ON WIDE LONG PLATE SC - INTERNAL / LEVER / LARGE TURN INDICATING- SATIN CHROME ON BRASS AND MATT BLACK

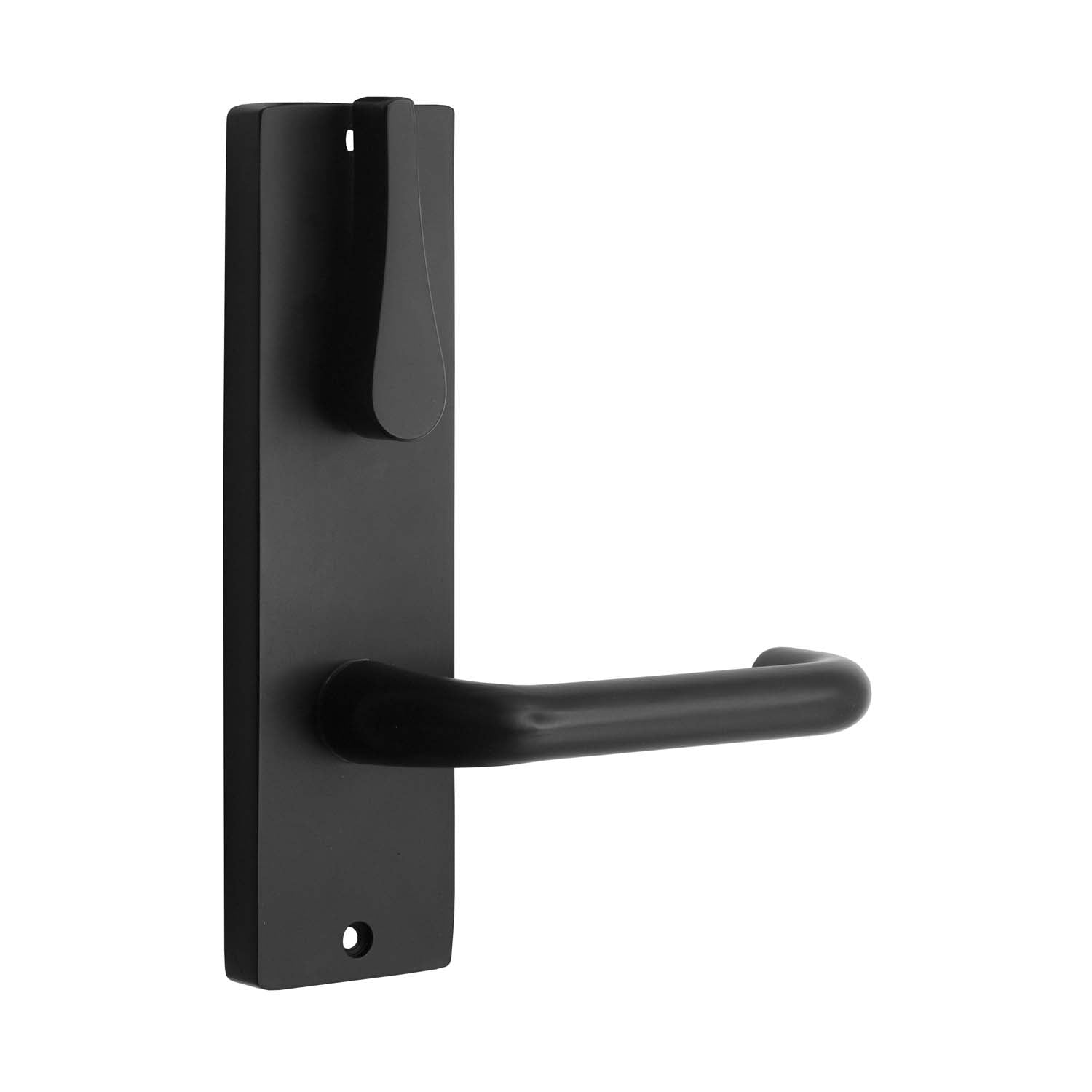

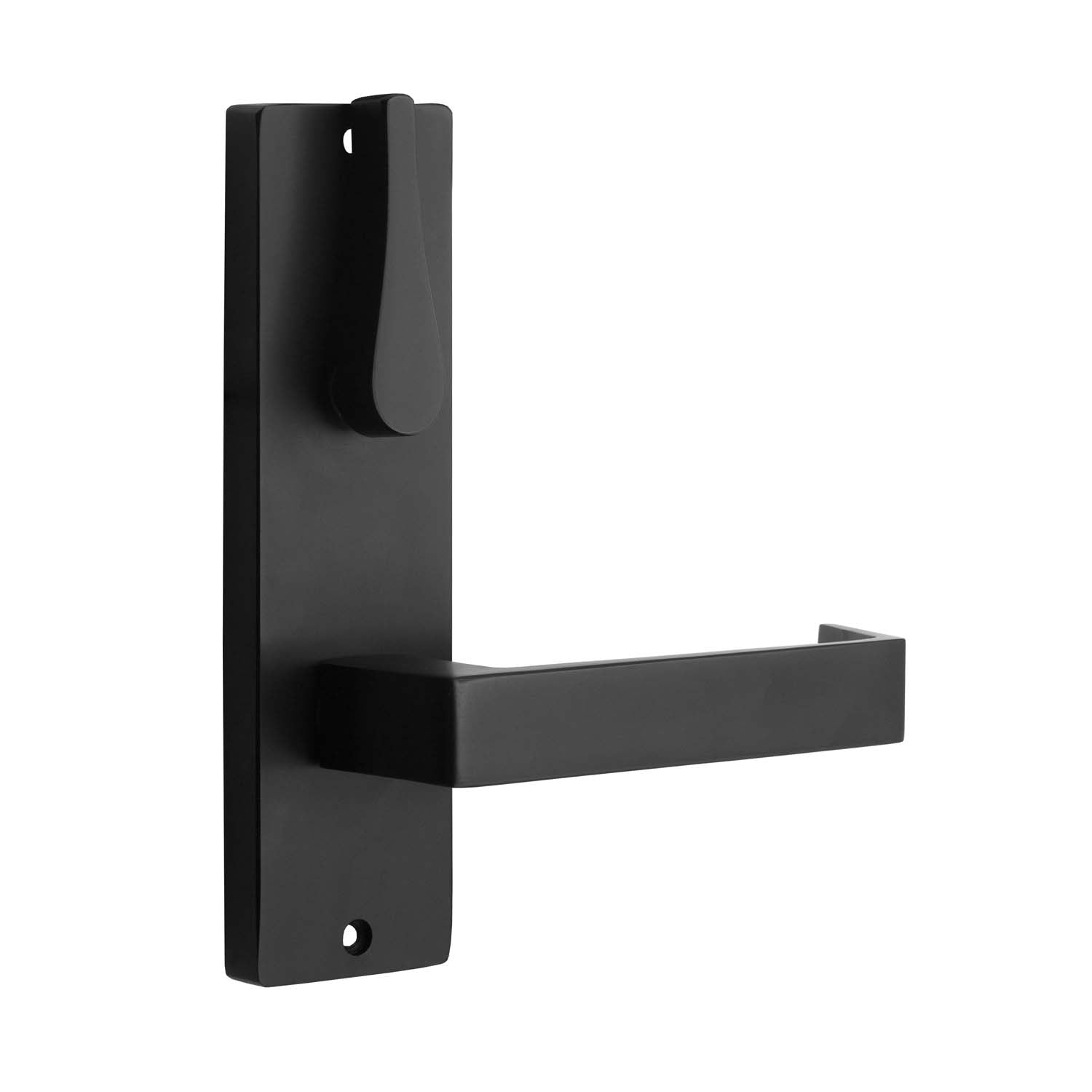

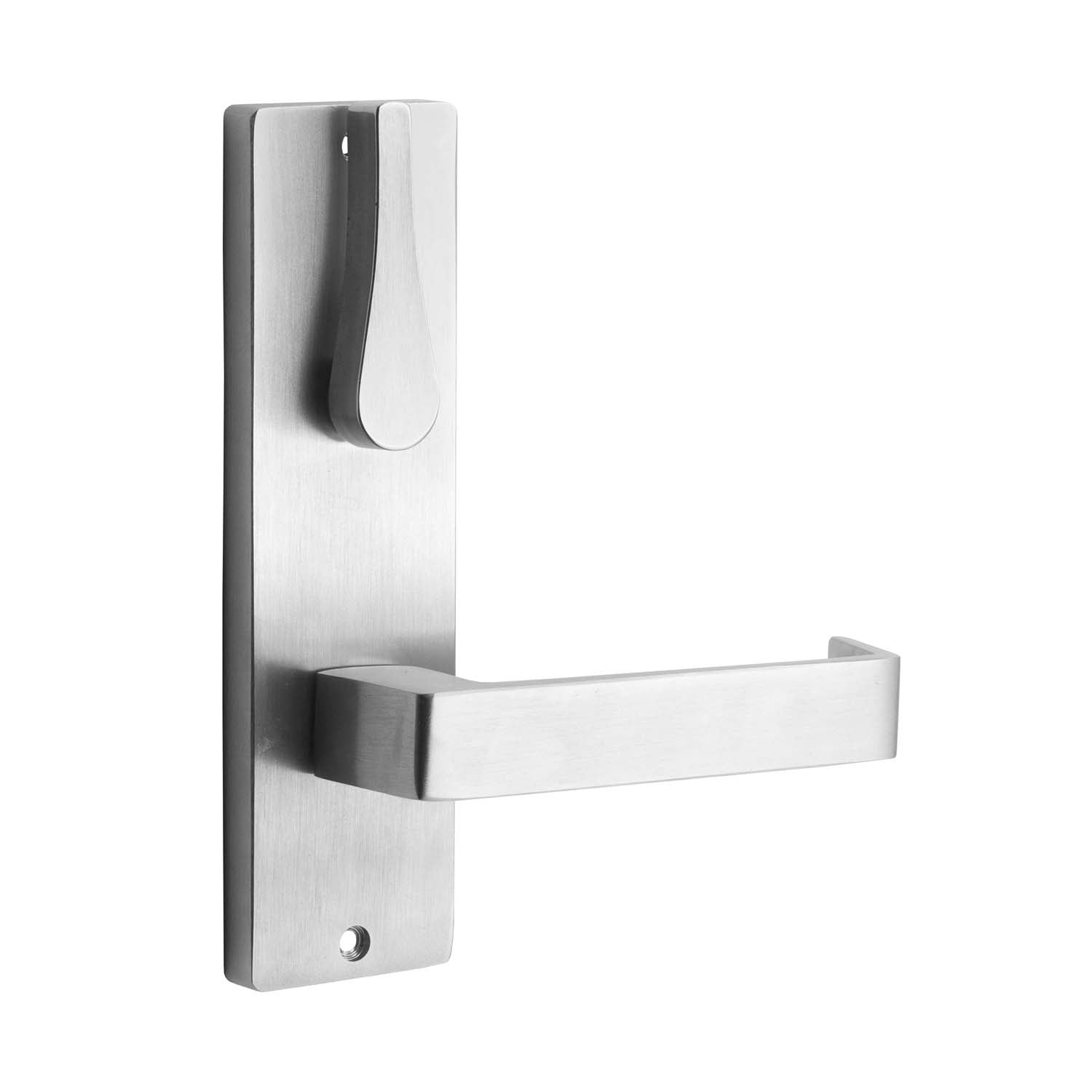

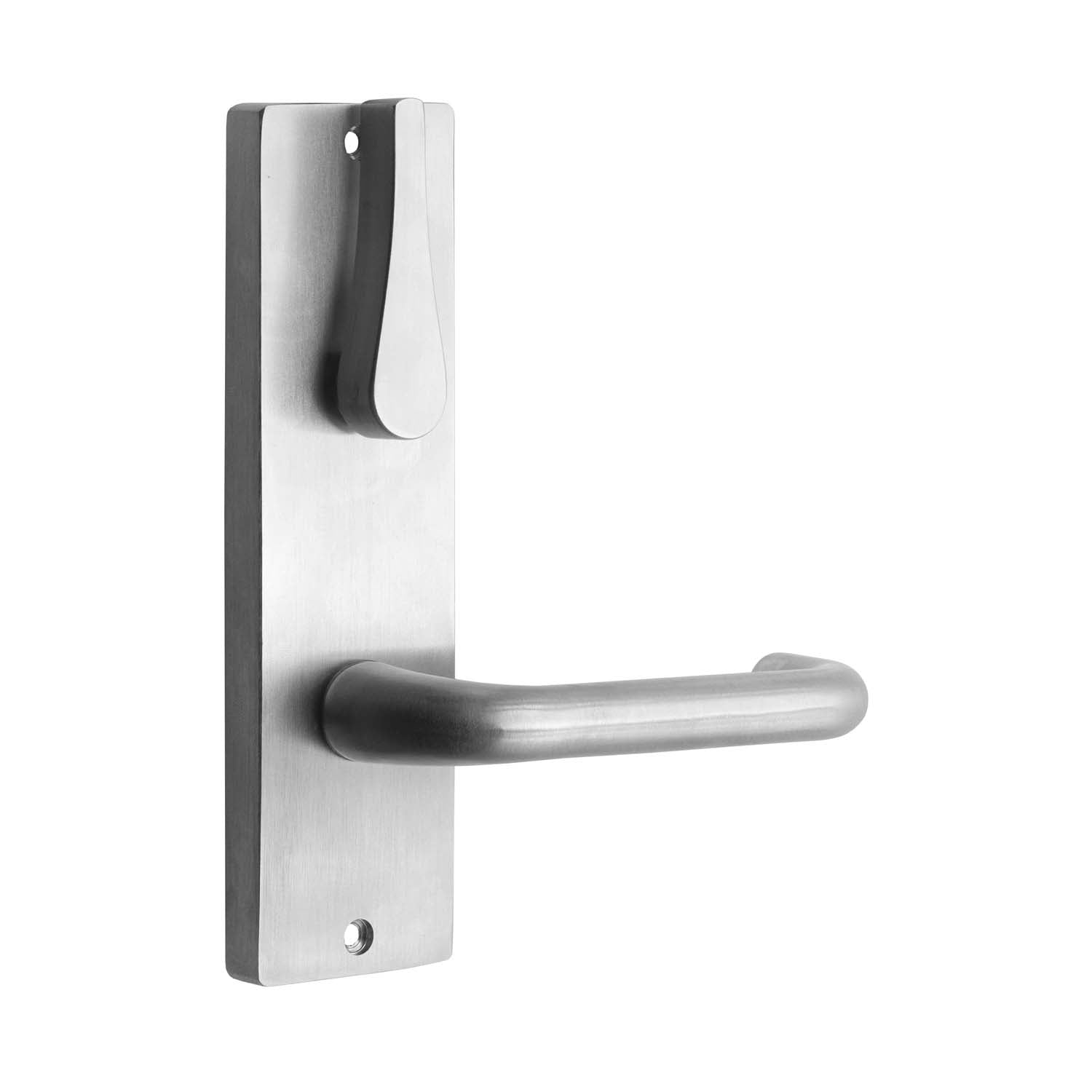

MNC 87 / 90 Lever – Wide Long Plate

The MNC 87 / 90 Lever on Wide Long Plate combines modern styling, accessibility and reliable functionality, making it an ideal choice for commercial and high-traffic environments. The 90° lever design provides a comfortable and practical grip for everyday use.

Key Features

• 90 Lever Design – Comfortable and easy to operate
• Matt Black Finish – Sleek, modern and durable finish
• Large Turn Indicator – Provides clear visual indication for effortless operation
• Red/Green Indicator – Offers clear visual cues for improved accessibility
• Stop Plate – Prevents over-turning and helps protect the handle and door mechanism
• Non-Handed Design – Suitable for both left- and right-handed doors
• Quick Handing Change Design
• Disability Compliant
• Retrofit Compatible – Suitable for most commercial door handles
• Door Thickness: Supplied with screws suitable for doors up to 55 mm thick

Handle Specifications

• Lever: 90 Lever
• Base Dimensions: 175 mm (L) × 48 mm (W) × 11.5 mm (D)
• Screw Fixing CTC: 158 mm
• Screw Size: M4
• Spindle Size: 7.6 mm
• Material: Brass
• Finish: Matt Black
• Warranty: 10 Years Mechanical
• Fixings: Included

Application

Ideal for commercial buildings, offices, retail spaces, schools and other high-traffic areas where durability, accessibility and modern aesthetics are required.
