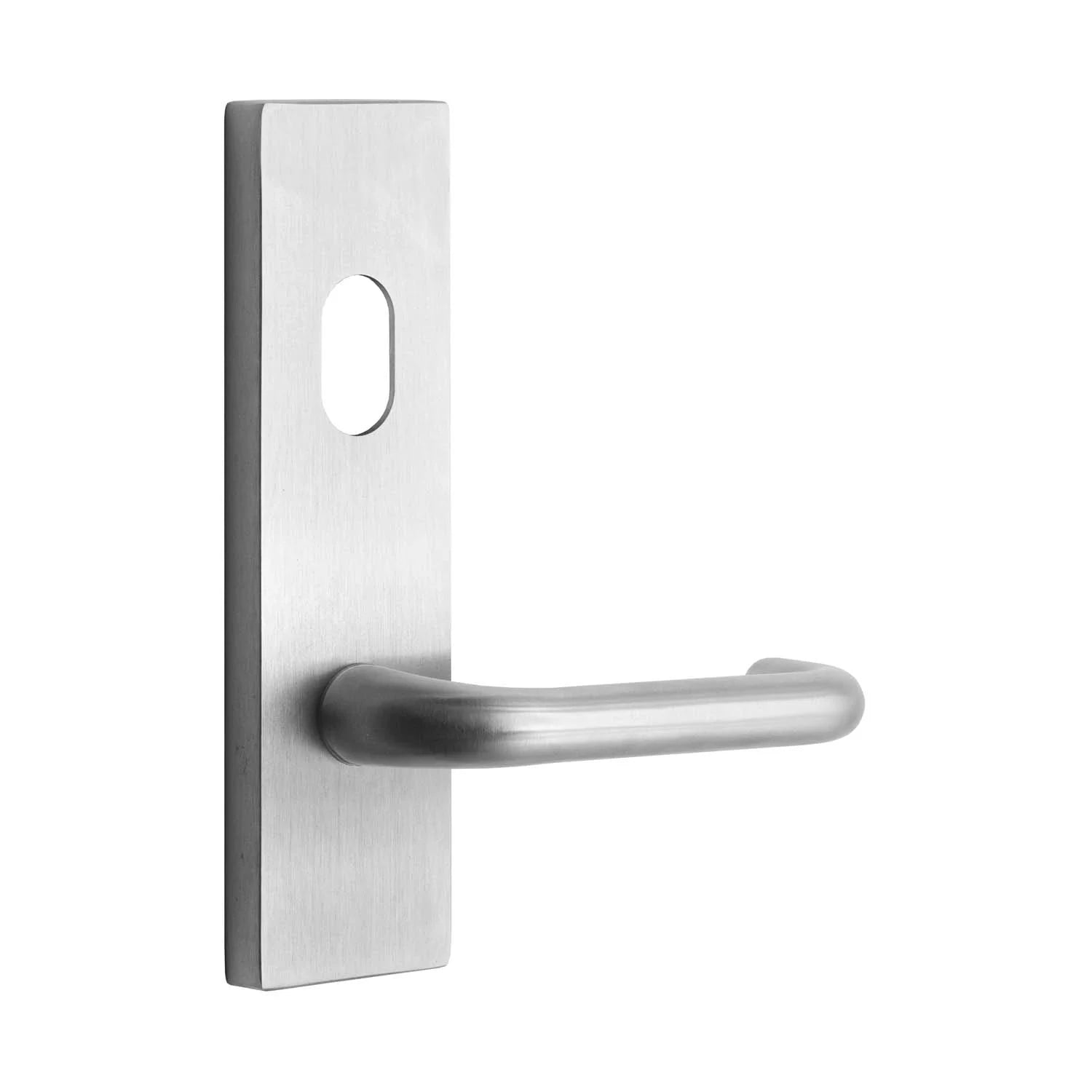

MNC Lever Handle – Product Specification
Wide Long Plate – Satin Chrome on Brass
Designed with a compression spring mechanism to assist installation and provide enhanced durability for high-use commercial applications.
Compatible / Like Products
- Lockwood LW1801/70
- Legge LA702/29
- DormaKaba 601C/25
Handle Specifications
- Base Dimensions: 175 mm (L) × 48 mm (W) × 11.5 mm (D)
- Screw Fixing CTC: 158 mm
- Screw Size: M4
- Spindle Size: 7.6 mm
- Material: Brass
- Finish: Satin Chrome on Brass
- Warranty: 10 Years Mechanical
Features & Benefits
- Quick Handing Change Design
- Disability Compliant

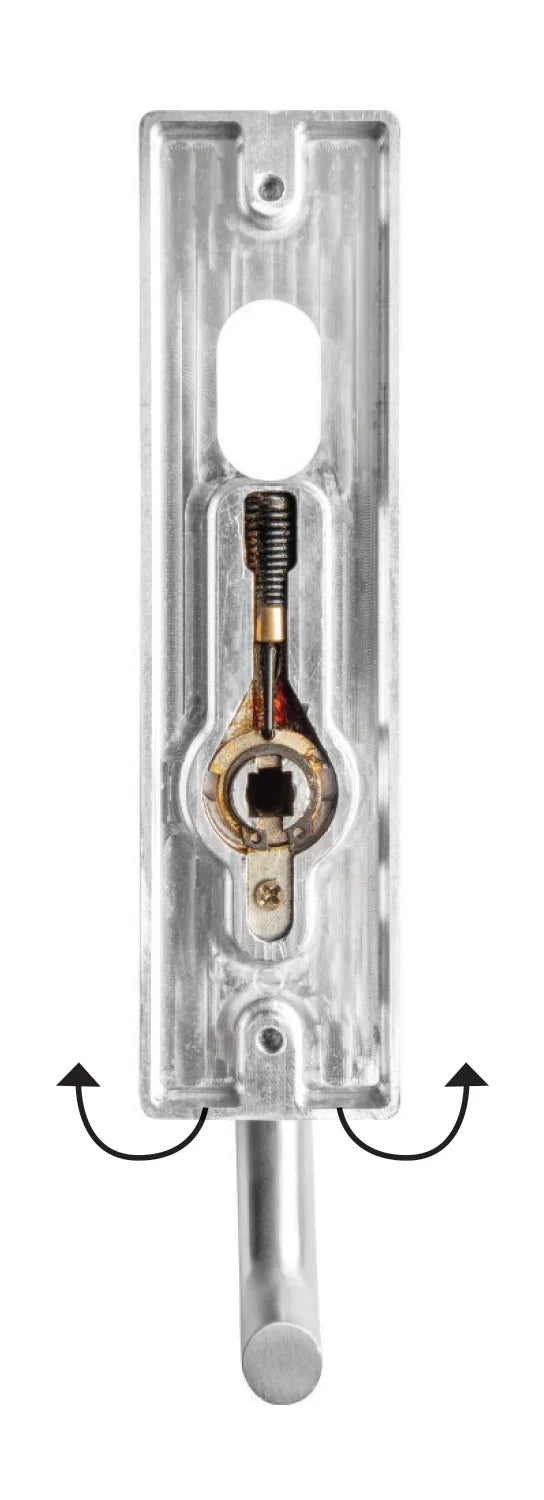

- Compression Spring Design for easier installation and improved durability
- Retrofit Compatible: Suitable for most commercial door handles
- Door Thickness: Supplied with screws suitable for doors up to 55 mm thick
