MNC Lever Handle – Product Specification
Wide Long Plate – Satin Chrome on Brass / Matt Black Finish Available

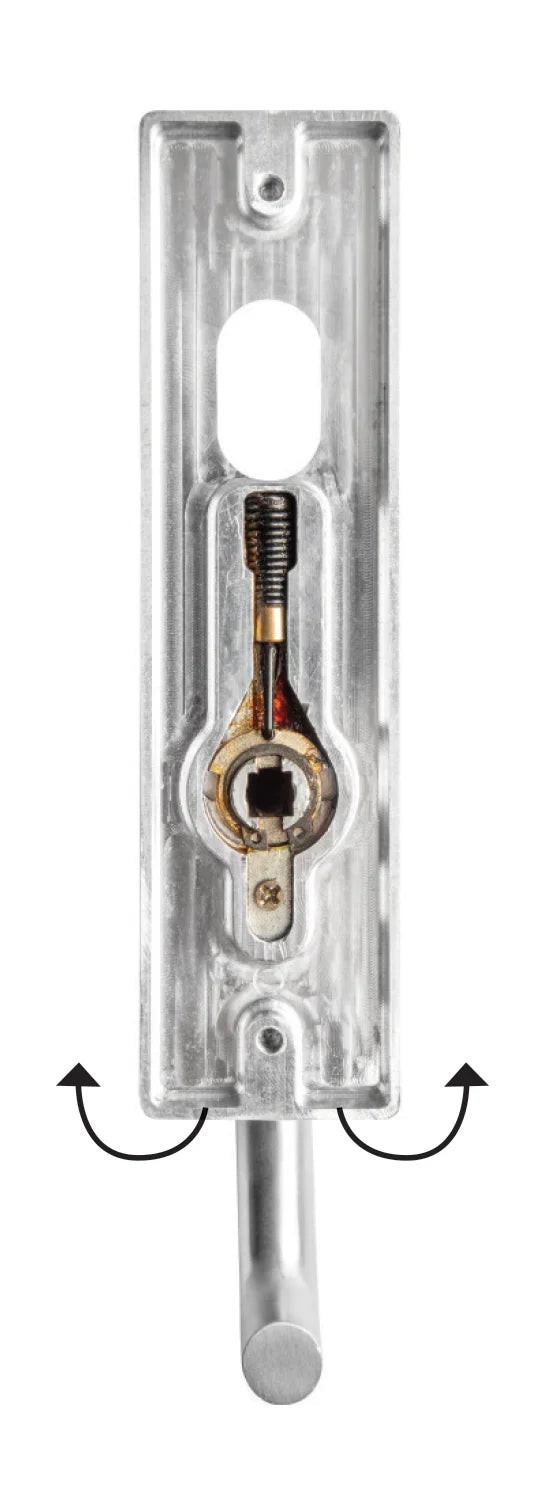

Designed with a compression spring mechanism that assists installation and increases durability, making it ideal for commercial and high-traffic environments.
Compatible / Like Products
- Lockwood LW1805/70
- Legge LA703/29
- DormaKaba 602C/25
Handle Specifications
- Base Dimensions: 175 mm (L) × 48 mm (W) × 11.5 mm (D)
- Screw Fixing CTC: 158 mm
- Screw Size: M4
- Spindle Size: 7.6 mm
- Material: Brass

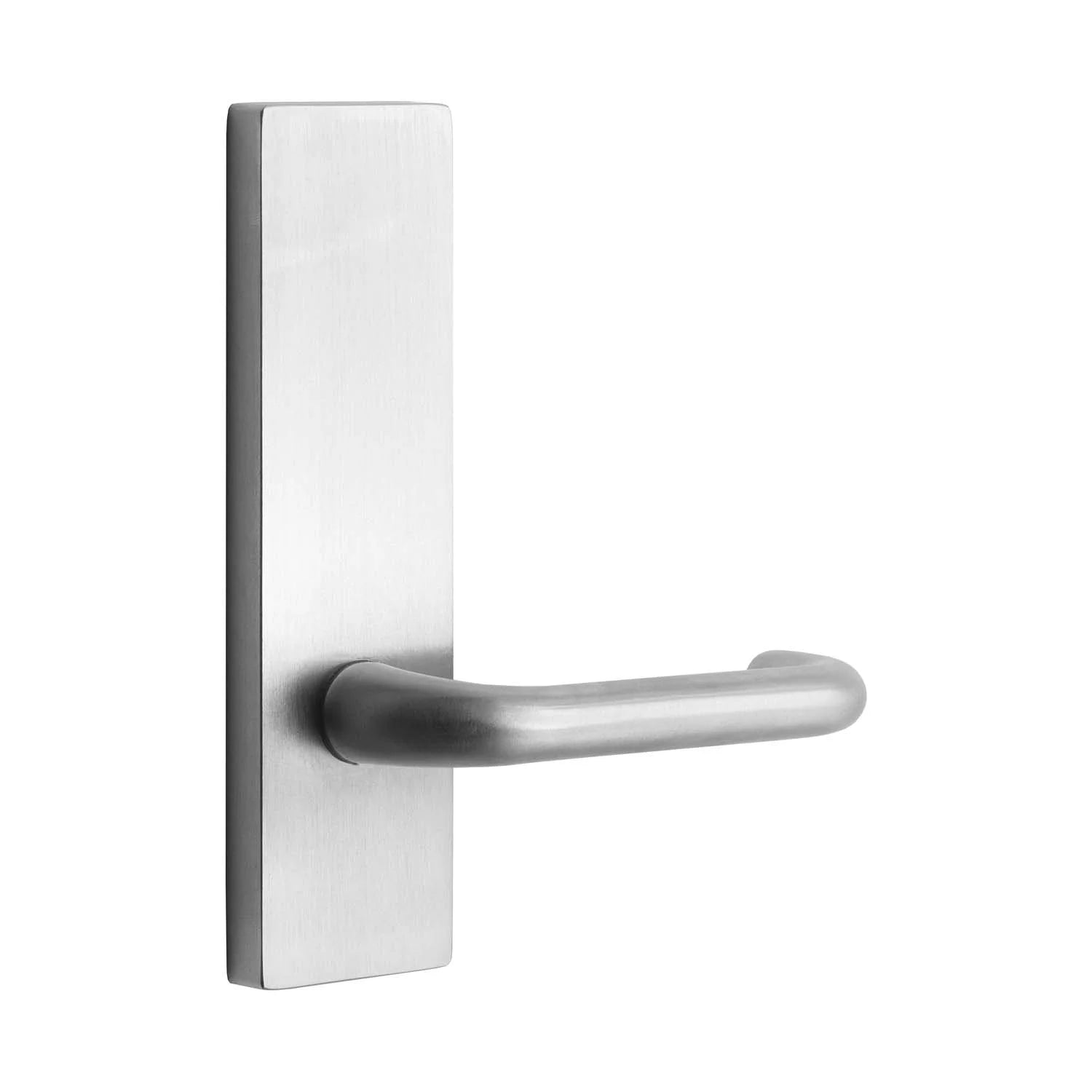

- Finish: Satin Chrome on Brass

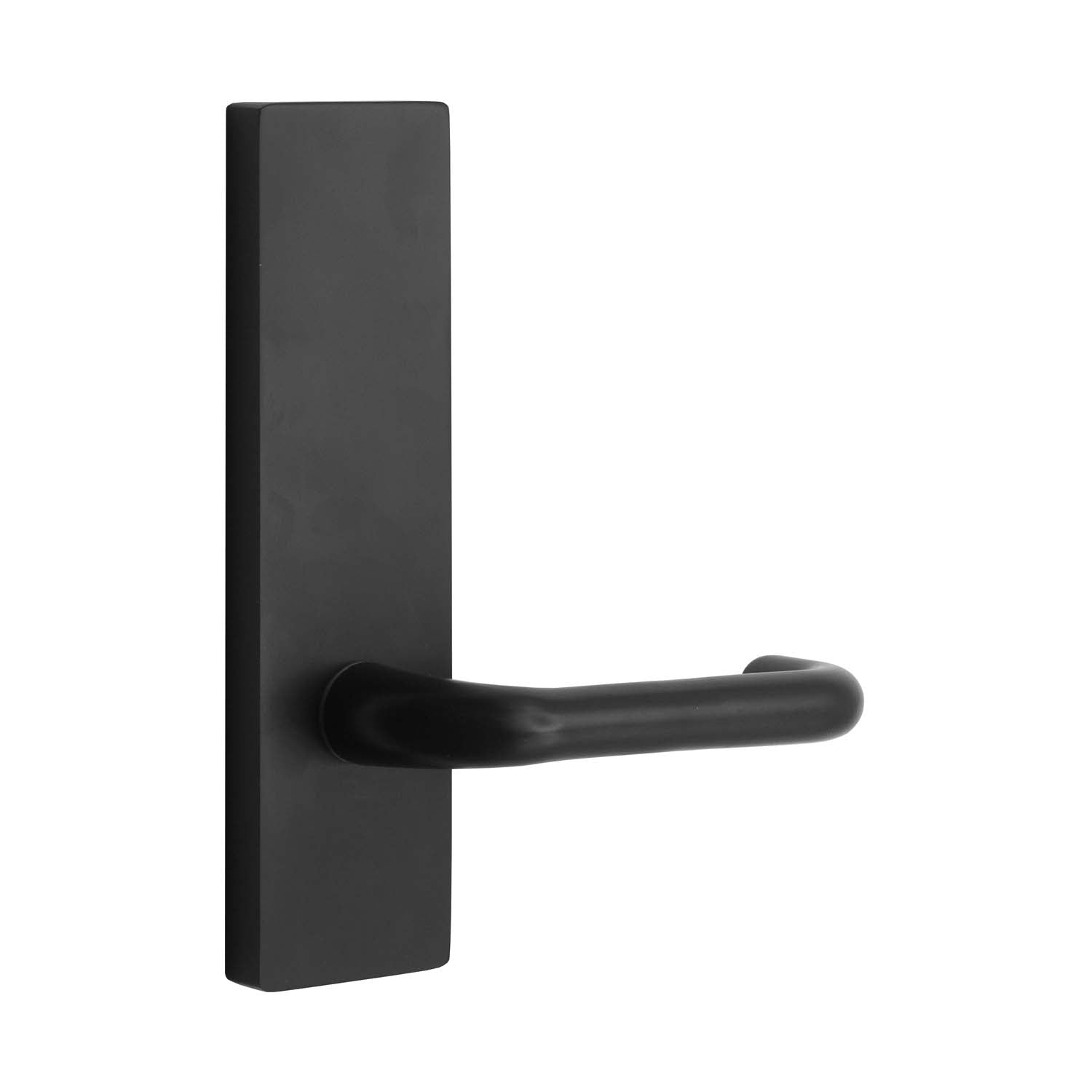

- Matt Black: Available
- Warranty: 10 Years Mechanical
Features & Benefits
- Compression Spring Design – Aids installation and increases durability
- Quick Handing Change Design
- Disability Compliant
- Retrofit Compatible – Suitable for most commercial door handles
- Door Thickness: Supplied with screws suitable for doors up to 55 mm thick
