MILES NELSON COMMERCIAL WIDE AND NARROW PLATE CYLINDER HOLE WITH KNOB

Narrow Knobset – Product Specification

Compatible with Common Industry Options

• Retrofits with Lockwood LW4601/70
• Legge LG5300/29
• DormaKaba N601C/25

Built for High-Traffic Environments

• Designed specifically for busy commercial environments
• Manufactured using commercial-grade components
• Forged Brass knobs and plates provide excellent durability
• Built for long-lasting performance, reliability and safety

Description

• Back-to-Back Plate Installation: For concealed fixing on the outside, the inside plate will require visible fixing.
• Suitable for Thicker Doors: External plates are supplied with screws suitable for doors up to 55 mm thick.
• Satin Chrome Finish: Kept in stock for faster availability and reduced waiting times.

Model Options

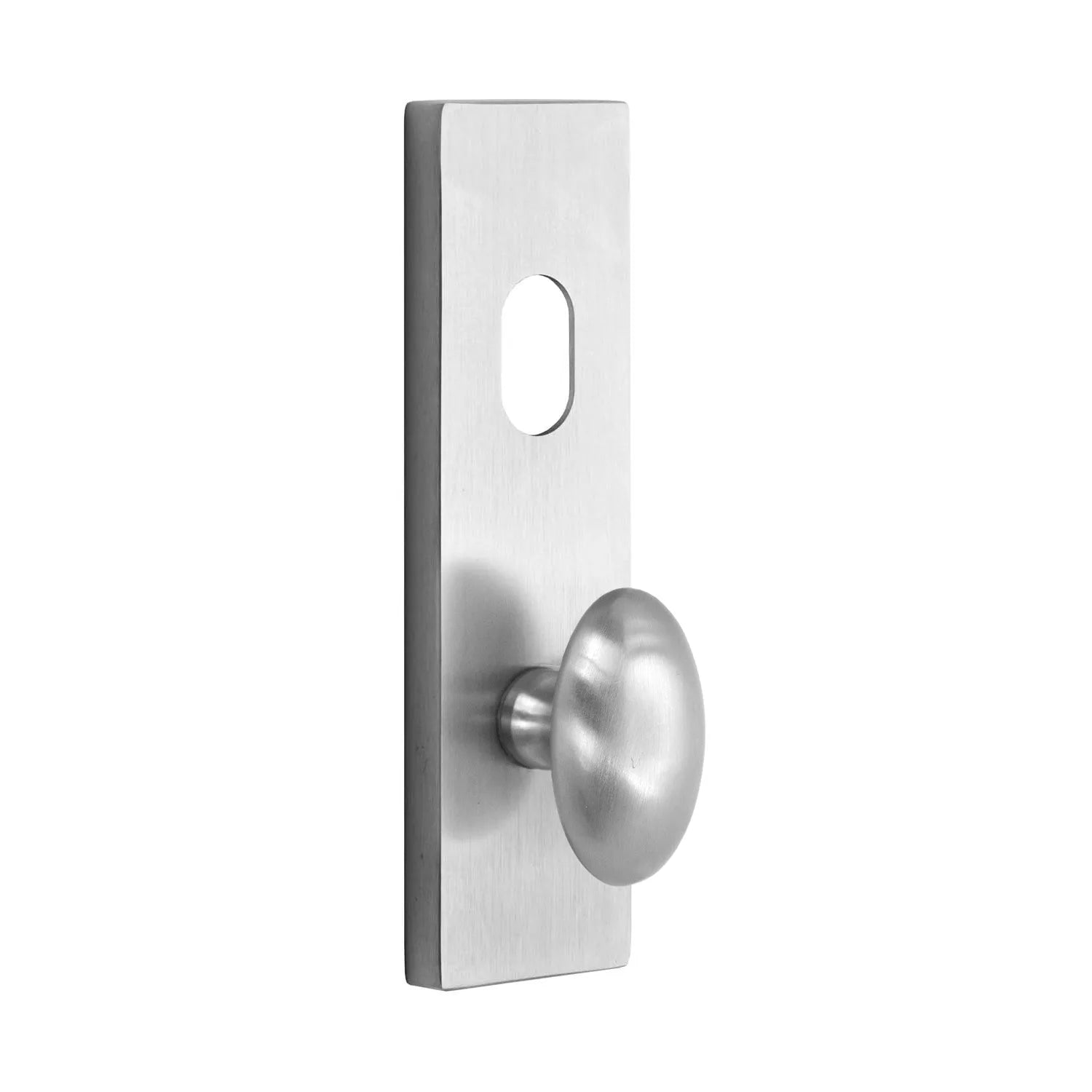

• MNC151/K: Compatible with the MNC5000 60 mm backset mortice lock series.

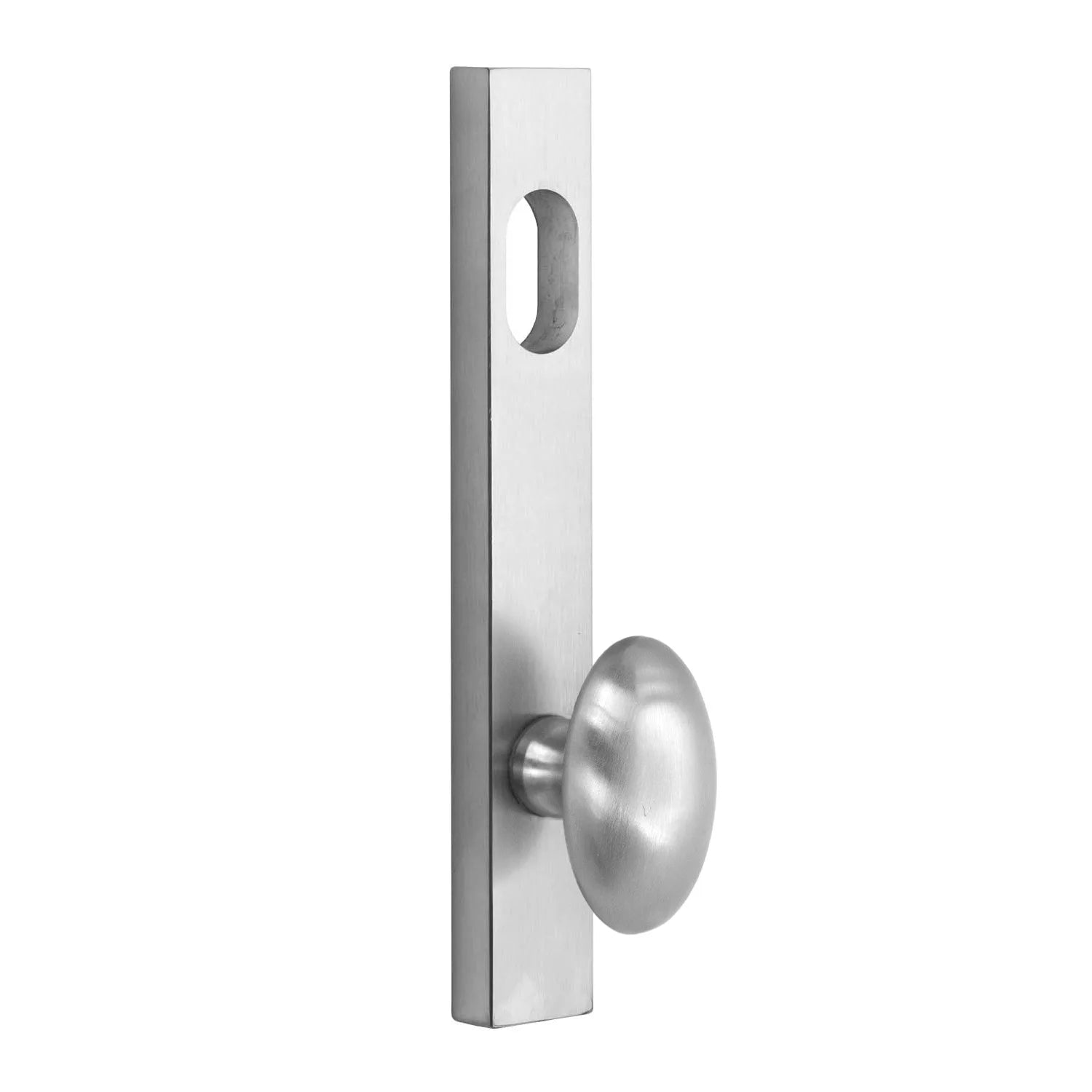

• MNC151N/K: Compatible with the MNC2000 mortice lock series and suitable for outward-opening doors only with a 23 mm backset.

Key Specifications

• Fixing CTC: 159 mm
• Material: Forged Brass
• Fixings: Included

Wide Knobset Product Specification

• Base Dimensions: 175 mm (L) × 48 mm (W) × 11.5 mm (D)
• Screw Fixing CTC: 158 mm
• Screw Size: M4
• Spindle Size: 7.6 mm
• Material: Brass
• Warranty: 10 Years
• Compatibility: Retrofits most commercial door handles
• Door Thickness: MNC handles are supplied with screws suitable for doors up to 55 mm thick.
