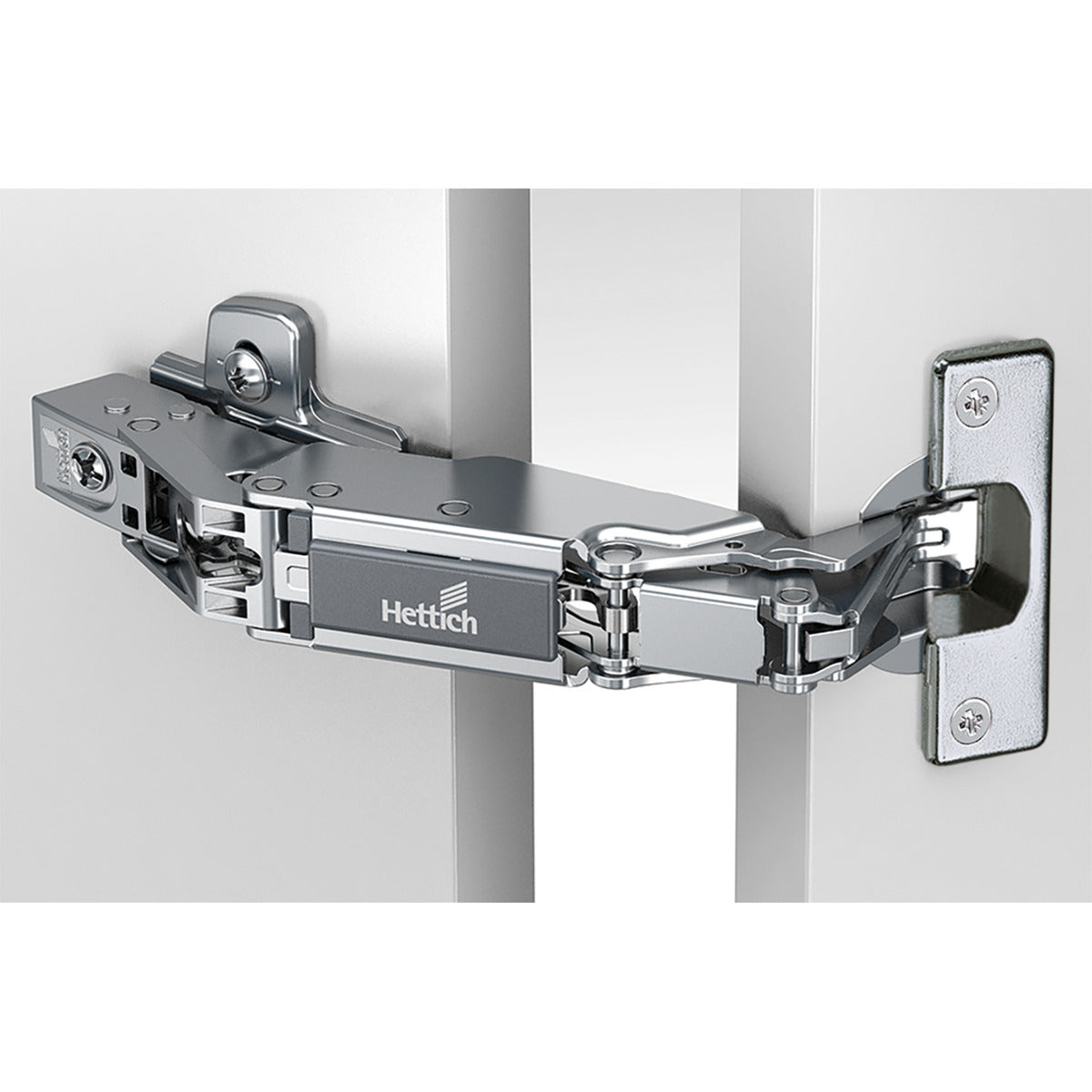

Sensys Wide Angle Hinge, with zero protrusion (Sensys 8657), overlay, Opening angle 165°, TH-drilling pattern 52 x 5.5 mm, for screwing on

Sensys Wide Angle Hinge, with zero protrusion (Sensys 8657), overlay, Opening angle 165°, TH-drilling pattern 52 x 5.5 mm, for screwing on

9099750

$24.39 NZD
$24.39 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Sensys wide angle hinge, with zero protrusion

  • Sensys wide angle hinge, with zero protrusion
  • With self closing feature (Sensys 8657)
  • Quality classification under EN 15570, Level 3
  • Opening angle 165°
  • For door thickness 15 - 24 mm
  • Door mounting option overlay (B 12.5 mm)
  • TH-drilling pattern 52 x 5.5 mm
  • Cup depth 11.6 mm
  • Installation for screwing on (TH 42)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel / die-cast zinc nickel plated

You may need a mounting plate with this hinge

Technical details
Design 90° construction
Door type Rebated door / mitred door
Standard door / wooden door
Thick door
Aluminium framed door (profile width from 50 mm)
Wood framed door (profile width from 50 mm)
User friendly features without integrated silent system
Door mounting option overlay
Opening angle 165 °
Min. door thickness 15 mm
Max. door thickness 24 mm
Cup version TH 42
Base 12.5 mm
Cup diameter 35 mm
Cup depth 11.6 mm
Type of installation for screwing on
Hinge surface finish steel / die-cast zinc nickel plated

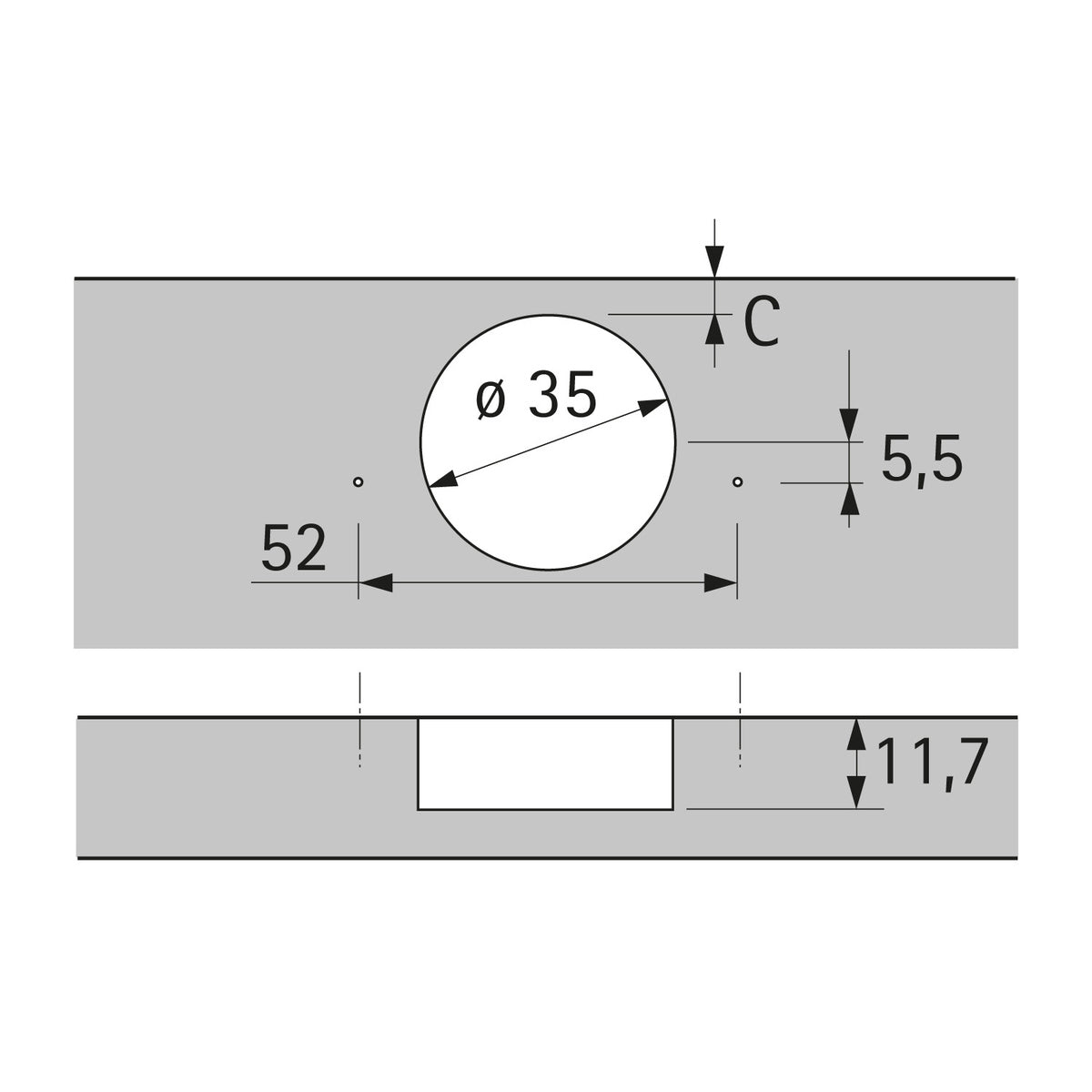

Drilling pattern TH 52 x 5,5 mm
Mounting hole -
Diameter of mounting hole Centre punch
Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Stay closed function Yes
Finish nickel plated
